Programming in Java Advanced Imaging


C H A P T E R8

Geometric Image Manipulation




THIS chapter describes the basics of JAI's geometric image manipulation functions. The geometric image manipulation operators are all part of the javax.media.operator package.

8.1 Introduction

The JAI geometric image manipulation functions are:

Most of these geometric functions require an interpolation argument, so this chapter begins with a discussion of interpolation.

8.2 Interpolation

Several geometric image operations, such as Affine, Rotate, Scale, Shear, Translate, and Warp, use a geometric transformation to compute the coordinate of a source image point for each destination image pixel. In most cases, the destination pixel does not lie at a source pixel location, but rather lands somewhere between neighboring pixels. The estimated value of each pixel is set in a process called interpolation or image resampling.

Resampling is the action of computing a pixel value at a possibly non-integral position of an image. The image defines pixel values at integer lattice points, and it is up to the resampler to produce a reasonable value for positions not falling on the lattice. A number of techniques are used in practice, the most common being the following:

The area over which a resampling function needs to be computed is referred to as its support; thus the standard resampling functions have supports of 1, 4, and 16 pixels respectively. Mathematically, the ideal resampling function for a band-limited image (one containing no energy above a given frequency) is the sinc function, equal to sin(x)/x. This has practical limitations, in particular its infinite support, which lead to the use of the standard approximations described above.

In interpolation, each pixel in a destination image is located with integer coordinates at a distinct point D in the image plane. The geometric transform T identifies each destination pixel with a corresponding point S in the source image. Thus, D is the point that T maps to S. In general, S doesn't correspond to a single source pixel; that is, it doesn't have integer coordinates. Therefore, the value assigned to the pixel D must be computed as an interpolated combination of the pixel values closest to S in the source image.

For most geometric transformations, you must specify the interpolation method to be used in calculating destination pixel values. Table 8-1 lists the names used to call the interpolation methods.

Table 8-1 Interpolation Types
Name Description
INTERP_NEAREST
Nearest-neighbor interpolation. Assigns to point D in the destination image the value of the pixel nearest S in the source image. See Section 8.2.1, "Nearest-neighbor Interpolation."
INTERP_BILINEAR
Bilinear interpolation. Assigns to Point D in the destination a value that is a bilinear function of the four pixels nearest S in the source image. See Section 8.2.2, "Bilinear Interpolation."
INTERP_BICUBIC
Bicubic interpolation. Assigns to point D in the destination image a value that is a bicubic function of the 16 pixels nearest S in the source image.Section 8.2.3, "Bicubic Interpolation."
INTERP_BICUBIC2
Bicubic2 interpolation. Similar to Bicubic, but uses a different polynomial function. See Section 8.2.4, "Bicubic2 Interpolation."

Occasionally, these four options do not provide sufficient quality for a specific operation and a more general form of interpolation is called for. The more general form of interpolation, called table interpolation uses tables to store the interpolation kernels. See Section 8.2.5, "Table Interpolation."

Other interpolation functions may be required to solve problems other than the resampling of band-limited image data. When shrinking an image, it is common to use a function that combines area averaging with resampling to remove undesirable high frequencies as part of the interpolation process. Other application areas may use interpolation functions that operate under other assumptions about image data, such as taking the maximum value of a 2 x 2 neighborhood. The Interpolation class provides a framework in which a variety of interpolation schemes may be expressed.

Many Interpolations are separable, that is, they may be equivalently rewritten as a horizontal interpolation followed by a vertical one (or vice versa). In practice, some precision may be lost by the rounding and truncation that takes place between the passes. The Interpolation class assumes separability and implements all vertical interpolation methods in terms of corresponding horizontal methods, and defines isSeparable to return true. A subclass may override these methods to provide distinct implementations of horizontal and vertical interpolation. Some subclasses may implement the two-dimensional interpolation methods directly, yielding more precise results, while others may implement these using a two-pass approach.

When interpolations that require padding the source such as Bilinear or Bicubic interpolation are specified, the boundary of the source image needs to be extended such that it has the extra pixels needed to compute all the destination pixels. This extension is performed via the BorderExtender class. The type of border extension can be specified as a RenderingHint to the JAI.create method. If no border extension type is provided, a default extension of BorderExtender.BORDER_COPY will be used to perform the extension. See Section 3.7.3, "Rendering Hints."

Listing 8-1 shows a code sample for a rotate operation. First, the type of interpolation is specified (INTERP_NEAREST in this example) using the Interpolation.create method. Next, a parameter block is created and the interpolation method is added to the parameter block, as are all the other parameters required by the operation. Finally, a rotate operation is created with the specified parameter block.

Listing 8-1 Example Using Nearest-neighbor Interpolation


     // Specify the interpolation method to be used
     interp = Interpolation.create(Interpolation.INTERP_NEAREST);
     // Create the parameter block and add the interpolation to it
     ParameterBlock pb = new ParameterBlock();
     pb.addSource(im);         // The source image
     pb.add(0.0F);             // The x origin to rotate about
     pb.add(0.0F);             // The y origin to rotate about
     pb.add(theta);            // The rotation angle in radians
     pb.add(interp);           // The interpolation method
     // Create the rotation operation and include the parameter
     // block
     RenderedOp op JAI.create("rotate", pb, null);

The Interpolation class provides methods for the most common cases of 2 x 1, 1 x 2, 4 x 1, 1 x 4, 2 x 2, and 4 x 4 input grids, some of which are shown in Figure 8-1. These methods are defined in the superclass (Interpolation) to package their arguments into arrays and forward the call to the array versions, to simplify implementation. These methods should be called only on Interpolation objects with the correct width and height. In other words, an implementor of an Interpolation subclass may implement interpolateH(int s0, int s1, int xfrac), assuming that the interpolation width is in fact equal to 2, and does not need to enforce this constraint.

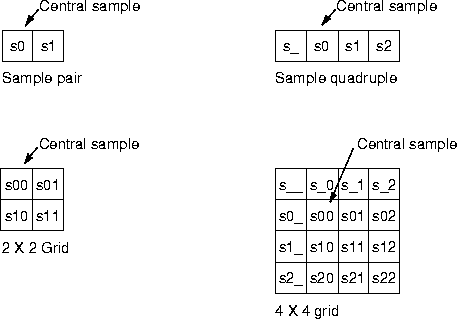

Figure 8-1 Interpolation Samples

Another possible source of inefficiency is the specification of the subsample position. When interpolating integral image data, JAI uses a fixed-point subsample position specification, that is, a number between 0 and (2n - 1) for some small value of n. The value of n in the horizontal and vertical directions may be obtained by calling the getSubsampleBitsH and getSubsampleBitsV methods. In general, code that makes use of an externally-provided Interpolation object must query that object to determine its desired positional precision.

For float and double images, JAI uses a float between 0.0F and 1.0F (not including 1.0F) as a positional specifier in the interest of greater accuracy.


API: javax.media.jai.Interpolation

creates an interpolation of one of the standard types, where type is one of INTERP_NEAREST, INTERP_BILINEAR, INTERP_BICUBIC, or INTERP_BICUBIC_2.

performs interpolation on a two-dimensional array of integral samples. By default, this is implemented using a two-pass approach.

Parameters:

samples

A two-dimensional array of ints.

xfrac

The x subsample position, multiplied by 2subsampleBits.

yfrac

The y subsample position, multiplied by 2subsampleBits.

performs interpolation on a two-dimensional array of floating-point samples. This is the same as the above method, only using float values instead of ints.

Performs interpolation on a 2-dimensional array of double samples.

performs interpolation on a 2 x 2 grid of integral samples. It should only be called if width == height == 2 and leftPadding == topPadding == 0.

The s00, s01, s10, and s11 parameters are the sample values (see the 2 x 2 grid illustration in Figure 8-1).

performs interpolation on a 2 x 2 grid of integral samples. This is the same as the above method, only using float values instead of ints.

performs interpolation on a 2 x 2 grid of double samples.

performs interpolation on a 4 x 4 grid of integral samples. It should only be called if width == height == 4 and leftPadding == topPadding == 1.

The s__, through s22 parameters are the sample values (see the 4 x 4 grid illustration in Figure 8-1).

performs interpolation on a 4 x 4 grid of integral samples. This is the same as the above method, only using float values instead of ints.

returns the number of bits used to index subsample positions in the horizontal direction. All integral xfrac parameters should be in the range of 0 to 2(getSubsampleBitsH) - 1.

returns the number of bits used to index subsample positions in the vertical direction. All integral yfrac parameters should be in the range of 0 to 2(getSubsampleBitsV) - 1.

8.2.1 Nearest-neighbor Interpolation

Nearest-neighbor interpolation, also known as zero-order interpolation, is the fastest interpolation method, though it can produce image artifacts called jaggies or aliasing error. Jaggies are image artifacts in which the straight edges of objects appear to be rough or jagged.

Nearest-neighbor interpolation simply assigns to point D in the destination image the value of the pixel nearest S in the source image.

Neighborhoods of sizes 2 x 1, 1 x 2, 2 x 2, 4 x 1, 1 x 4, 4 x 4, N x 1, and 1 x N, that is, all the interpolate() methods defined in the Interpolation class, are supported in the interest of simplifying code that handles a number of types of interpolation. In each case, the central sample is returned and the rest are ignored.


API: javax.media.jai.InterpolationNearest

constructs an InterpolationNearest. The return value of getSubsampleBitsH() and getSubsampleBitsV() will be 0.

8.2.2 Bilinear Interpolation

Bilinear interpolation, also known as first-order interpolation, linearly interpolates pixels along each row of the source image, then interpolates along the columns. Bilinear interpolation assigns to Point D in the destination a value that is a bilinear function of the four pixels nearest S in the source image.

Bilinear interpolation results in an improvement in image quality over nearest-neighbor interpolation, but may still result in less-than-desirable smoothing effects.

Bilinear interpolation requires a neighborhood extending one pixel to the right and below the central sample. If the subsample position is given by (u, v), the resampled pixel value will be:


API: javax.media.jai.InterpolationBilinear
constructs an InterpolationBilinear object with a given subsample precision, in bits.

Parameters:

subsampleBits

The subsample precision.

constructs an InterpolationBilinear object with the default subsample precision.

8.2.3 Bicubic Interpolation

Bicubic interpolation reduces resampling artifacts even further by using the 16 nearest neighbors in the interpolation and by using bicubic waveforms rather than the linear waveforms used in bilinear interpolation. Bicubic interpolation preserves the fine detail present in the source image at the expense of the additional time it takes to perform the interpolation.

The bicubic interpolation routine assigns to point D in the destination image a value that is a bicubic function of the 16 pixels nearest S in the source image.

Bicubic interpolation performs interpolation using the following piecewise cubic polynomial:

Bicubic interpolation requires a neighborhood extending one sample to the left of and above the central sample, and two samples to the right of and below the central sample.


API: javax.media.jai.InterpolationBicubic

constructs an InterpolationBicubic with a given subsample precision, in bits.

Parameters:

subsampleBits

The subsample precision.

8.2.4 Bicubic2 Interpolation

Bicubic2 interpolation is basically the same as bicubic interpolation, but uses a different polynomial function. Bicubic2 interpolation uses the following piecewise cubic polynomial:

Bicubic interpolation requires a neighborhood extending one sample to the left of and above the central sample, and two samples to the right of and below the central sample.


API: javax.media.jai.InterpolationBicubic2

constructs an InterpolationBicubic2 with a given subsample precision, in bits.

Parameters:

subsampleBits

The subsample precision.

8.2.5 Table Interpolation

The previous-described types of interpolation, nearest-neighbor, bilinear, bicubic, and bicubic2, base the interpolation values on a relatively few pixels: one (nearest-neighbor), four (bilinear), or 16 (bicubic and bicubic2). Occasionally, these options don't provide sufficient quality for a specific operation and a general form of interpolation is called for. Table interpolation uses tables to store the interpolation kernels. The set of subpixel positions is broken up into a fixed number of "bins" and a distinct kernel is used for each bin. The number of bins must be a power of two.

An InterpolationTable defines a separable interpolation, with a separate set of kernels for the horizontal and vertical dimensions. The number of bins within each kernel may vary between the two dimensions. The horizontal and vertical kernels may be unique or the same. That is, you can either construct two separate kernels or use the same kernel for both the horizontal and vertical interpolation.

The kernels are stored in both floating- and fixed-point form. The fixed point representation has a user-specified fractional precision. You must specify an appropriate level of precision that will not cause overflow when accumulating the results of a convolution against a set of source pixels, using 32-bit integer arithmetic.

To use table interpolation, create an InterpolationTable with either identical horizontal and vertical resampling kernels or with different horizontal and vertical resampling kernels. The table forms the kernels used for the interpolation.

During a table interpolation operation, the key value of the resampling kernel, generally the center value, is laid over the source image pixel to be processed. The other kernel values lie over neighboring pixels much like a conventional M x N kernel operation. Each source image pixel that is covered by the kernel is then multiplied by the kernel value that lies over it. The multiplication products are then summed together and this sum becomes the pixel value in the destination.

To save memory space and computation time, the table interpolation operation does not use a conventional M x N kernel. Instead, the operation uses separate horizontal and vertical vector arrays (essentially, M x 1 and N x 1) to calculate the same values that a M x N kernel would calculate. The vector arrays allow you to provide fewer data elements for the kernel values. This is particularly significant for large tables with many subsamples.

The basic format for the InterpolationTable constructor is:

     InterpolationTable(int leftPadding, int topPadding, int width,
                        int height, int subsampleBitsH,
                        int subsampleBitsV, int precisionBits,
                        float[] dataH, float[] dataV)
The parameters to the constructor are described in the following paragraphs.

8.2.5.1 Padding

The leftPadding and topPadding parameters define the location of the central sample or key value, relative to the left and top of the horizontal and vertical kernels, respectively. These parameters actually define the number of samples to the left of or above the central sample, as shown in Figure 8-2.

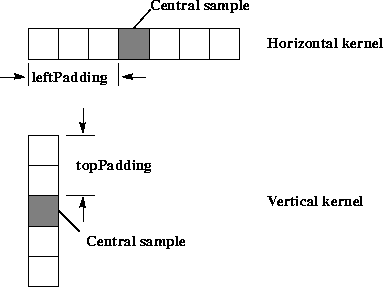

Figure 8-2 Table Interpolation Padding

8.2.5.2 Width and Height

The width and height parameters define the size of the horizontal and vertical kernels, respectively. These parameters specify the number of data elements in each subsample of the kernel. The horizontal and vertical tables can have different kernel sizes. For the two examples shown in Figure 8-2, the width parameter would be 7, the height parameter would be 5.

The getWidth and getHeight methods return the number of samples required for horizontal and vertical resampling, respectively.

8.2.5.3 Subsample Bits

The subsampleBitsH and subsampleBitsV parameters define the number of bins used to describe the horizontal and vertical subpixel positions, respectively. The number of bins must be a power of two, so the values are integers expressed as the log2 of the number of horizontal or vertical subsample positions, respectively. The value subsampleBitsH = 1 defines two subsamples per horizontal sample, subsampleBitsH = 2 defines four subsamples per sample, and so on.

For each subsample, you must define separate kernel data. Typically, the kernel values for each subsample are weighted according to the subsample location's proximity to the pixels used in the calculation. The closer a pixel is to the subsample location, the more weight it carries in the kernel.

Figure 8-3 shows how the interpolation tables are used to determine which kernel applies to a particular subsample location. The figure shows a subsample of 4 in both the horizontal and vertical directions.

Typically, the kernel values for each subsample are weighted according to the subsample location's proximity to the pixels used in the calculation. The closer a pixel is to the subsample location, the more weight it carries in the kernel.

8.2.5.4 Precision

The precisionBits parameter defines the number of fractional bits to be used when resampling integral sample values. The same precision value is used for both horizontal and vertical resampling. It is important to choose an appropriate level of precision that will not cause overflow when accumulating the results of a convolution against a set of source pixels, using 32-bit integer arithmetic.

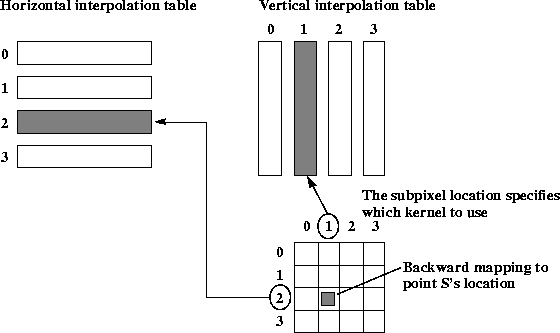

Figure 8-3 Table Interpolation Backwards Mapping

8.2.5.5 Kernel Data

The kernel data for each table is an array of floating point numbers. The dataH and dataV parameters specify the floating-point data values for the horizontal and vertical kernels, respectively. The number of data elements in the kernel is:

width x 2subsampleBitsH for dataH

height x 2subsampleBitsV for dataV

For a two-element kernel size with eight subsample bins (subsampleBits = 4), you need to define an array of 16 floating point values. The first two values define the kernel for the first subsample, the second two values define the kernel for the second subsample, and so on. For example:


     float[] kernelData = {1.0,    0.0,
                           0.875,  0.125,    // 7/8,  1/8
                           0.75,   0.25,     // 6/8,  2/8
                           0.625,  0.375,    // 5/8,  3/8
                           0.5,    0.5,      // 4/8,  4/8
                           0.375,  0.625,    // 3/8,  5/8
                           0.25,   0.75,     // 2/8,  6/8
                           0.125,  0.875 };  // 1/8,  7/8

The above example creates a bilinear interpolation table with eight subsamples. The kernel values indicate how much influence the source image pixels will have on the destination value. A kernel value of 1 indicates that a source pixel completely determines the value of the destination pixel. A kernel value of 0 indicates that the source pixel has no influence on the destination value.

To preserve the source image's intensity in the destination image, the sum of the data values in each interpolation kernel should equal one. If the kernel values sum to greater than one, the destination image's intensity will be increased. Conversely, if the kernel values sum to less than one, the destination image's intensity will be decreased.

If a value of null is given for dataV, the dataH table data is used for vertical interpolation as well, and the topPadding, height, and subsampleBitsV parameters are ignored.


API: javax.media.jai.InterpolationTable

constructs an InterpolationTable with identical horizontal and vertical resampling kernels.

Parameters:

padding

The number of samples to the left or above the central sample to be used during resampling.

width

The width or height of a resampling kernel.

subsample-Bits

The log2 of the number of subsample bins.

precision-Bits

The number of bits of fractional precision to be used when resampling integral sample values.

data

The kernel entries, as a float array of width*2subsampleBitsH entries.

constructs an InterpolationTable with identical horizontal and vertical resampling kernels.

Constructs an InterpolationTable with identical horizontal and vertical resampling kernels.

constructs an InterpolationTable with specified horizontal and vertical extents (support), number of horizontal and vertical bins, fixed-point fractional precision, and kernel entries. The kernel data values are organized as 2subsampleBits entries each containing width floats.

Parameters:

leftPadding

The number of samples to the left of the central sample to be used during horizontal resampling.

topPadding

The number of samples above the central sample to be used during vertical resampling.

width

The width of a horizontal resampling kernel.

height

The height of a vertical resampling kernel. Ignored if dataV is null.

subsample-BitsH

The log2 of the number of horizontal subsample bins.

subsample-BitsV

The log2 of the number of vertical subsample bins. Ignored if dataV is null.

precision-Bits

The number of bits of fractional precision to be used when resampling integral sample values. The same value is used for both horizontal and vertical resampling.

dataH

The horizontal table entries, as a float array of 2subsampleBitsH entries each of length width.

dataV

The vertical table entries, as a float array of 2subsampleBitsV entries each of length height, or null. If null, the dataH table is used for vertical interpolation as well and the topPadding, height, and subsampleBitsV parameters are ignored.

constructs an InterpolationTable with specified horizontal and vertical extents (support), number of horizontal and vertical bins, fixed-point fractional precision, and kernel entries.

constructs an InterpolationTable with specified horizontal and vertical extents (support), number of horizontal and vertical bins, fixed-point fractional precision, and int kernel entries.

8.2.5.6 Additional Interpolation Table-related Methods

The InterpolationTable class provides several methods for retrieving an interpolation table's kernel data values, subsample size, and precision.


API: javax.media.jai.InterpolationTable

returns the number of bits used to index subsample positions in the horizontal direction.

returns the number of bits used to index subsample positions in the vertical direction.

returns the number of bits of fractional precision used to store the fixed-point table entries.

returns the number of bits of fractional precision used to store the fixed-point table entries.

returns the number of samples required above the center.

returns the number of samples required for horizontal resampling.

returns the number of samples required for vertical resampling.

returns the integer (fixed-point) horizontal table data.

returns the integer (fixed-point) vertical table data.

returns the floating-point horizontal table data.

returns the floating-point vertical table data.

returns the double horizontal table data.

returns the double vertical table data.

8.3 Geometric Transformation

Geometric transformations provide the ability to reposition pixels within an image. Pixels may be relocated from their (x,y) spatial coordinates in the source image to new coordinates in the destination. Geometric transformations are used, for example, to move (translate), rotate, and scale the geometry of an image. A general type of geometric transformation, warp, is discussed later in this chapter (see Section 8.7, "Warping").

Geometric transformations are used to register multiple images, correct geometric distortions introduced in the image acquisition process, or to add visual effects. The geometric transformation operations discussed here include:

All transformation operations are performed by moving pixel values from their original spatial coordinates to new coordinates in the destination image. Every pixel in the source image is passed through this transformation, creating a geometrically-transformed output pixel location. Each pixel of the source image is transformed, pixel by pixel, to its new location in the destination image.

With a very few exceptions, all transformations result in some output pixel locations being missed because no input pixels were transformed there. The missed locations will be devoid of any pixel values and result in a black hole in the destination image. To overcome this problem, intermediate pixel values are estimated through interpolation (See "Interpolation" on page 241). One of four interpolation methods may be selected:

interpolation Methods Description
INTERP_NEAREST
Use nearest-neighbor interpolation
INTERP_BILINEAR
Use bilinear interpolation
INTERP_BICUBIC
Use bicubic interpolation
INTERP_BICUBIC2
Use bicubic2 interpolation (uses a different polynomial function)

8.3.1 Translation Transformation

Image translation is the spatial shifting of an image up, down, left, or right. The relationships between the source and destination image coordinates are given by the following equation:

where:

xD and yD are the integer pixel coordinates of the destination image

tx and ty are the translation values

x'S and y'S denote the source image point from which the pixel estimate is computed.

Translation is often used to register multiple images geometrically. The translation is often carried out to align the images before performing a combination operation, such as image addition, subtraction, division, or compositing.

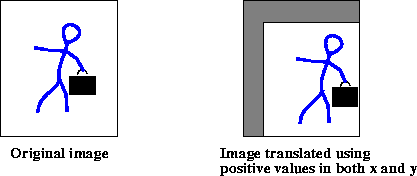

Figure 8-4 Translate Operation

The translate operation takes three parameters:

Parameters Type Description
xTrans
Float
The displacement in the x direction. The default value is 0.0F.
yTrans
Float
The displacement in the y direction. The default value is 0.0F.
interpolation
Interpolation
The interpolation method for resampling. One of INTERP_NEAREST, INTERP_BILINEAR, INTERP_BICUBIC, or INTERP_BICUBIC2. The default value is null.

The xTrans parameter corresponds to tx and the yTrans parameter corresponds to ty in equation 8.1. If xTrans is positive, the translation is to the right; if negative, to the left. If yTrans is positive, the translation is down; if negative, upward. If both xTrans and yTrans are integral, the operation simply wraps its source image to change the image's position in the coordinate plane.

When interpolations that require padding the source such as bilinear or bicubic interpolation are specified, the boundary of the source image needs to be extended such that it has the extra pixels needed to compute all the destination pixels. This extension is performed via the BorderExtender class. The type of border extension can be specified as a RenderingHint to the JAI.create method. If no border extension type is provided, a default extension of BorderExtender.BORDER_COPY will be used to perform the extension. See Section 3.7.3, "Rendering Hints."

Listing 8-2 shows a code sample for a translate operation using nearest-neighbor interpolation.

Listing 8-2 Example Translate Operation


     // Create a ParameterBlock and specify the source and
     // parameters.
     ParameterBlock pb = new ParameterBlock();
          pb.addSource(im);                   // The source image
          pb.add((float)Math.max(-mx, 0));    // The x translation
          pb.add((float)Math.max(-my, 0));    // The y translation
          pb.add(new InterpolationNearest()); // The interpolation
     // Create the translate operation
     im = JAI.create("translate", pb, null);

8.3.2 Scaling Transformation

Scaling, also known as minification and magnification, enlarges or shrinks an image. An x-value defines the amount of scaling in the x direction, and a y-value defines the amount of scaling in the y direction. The Scale operation both translates and resizes.

Scaling is often used to geometrically register multiple images prior to performing a combination operation, such as image addition, subtraction, division, or compositing. Scaling can also be used to correct geometric distortions introduced in the image acquisition process, although the Affine operation ("Affine Transformation" on page 264) would be more suitable for this.

For each pixel (x, y) of the destination, the source value at the fractional subpixel position is constructed by means of an Interpolation object and written to the destination.

The scale operation takes five parameters:

Parameters Type Description
xScale
Float
The x scale factor.
yScale
Float
The y scale factor.
xTrans
Float
The x translation.
xTrans
Float
The y translation.
interpolation
Interpolation
The interpolation method for resampling. One of INTERP_NEAREST, INTERP_BILINEAR, INTERP_BICUBIC, or INTERP_BICUBIC2.

When applying scale factors (xScale and yScale) to a source image with width of src_width and height of src_height, the resulting image is defined to have the following dimensions:

     dst_width = src_width * xScale
     dst_height = src_height * yScale
Scale factors greater than 1.0 magnify the image; less than 1.0 minify the image. The xTrans parameter corresponds to tx and the yTrans parameter corresponds to ty in equation 8.1. If xTrans is positive, the translation is to the right; if negative, to the left. If yTrans is positive, the translation is down; if negative, upward.

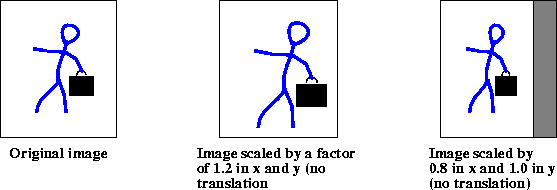

Figure 8-5 Scale Operation

When interpolations that require padding the source such as Bilinear or Bicubic interpolation are specified, the boundary of the source image needs to be extended such that it has the extra pixels needed to compute all the destination pixels. This extension is performed via the BorderExtender class. The type of border extension can be specified as a RenderingHint to the JAI.create method. See Section 3.7.3, "Rendering Hints."

If no Border Extension is specified, the source will not be extended. The scaled image size is still calculated according to the equation specified above. However since there isn't enough source to compute all the destination pixels, only that subset of the destination image's pixels that can be computed will be written in the destination. The rest of the destination will not be written.

Listing 8-3 shows a code sample for a Scale operation using a scale factor of 1.2 and nearest-neighbor interpolation.

Listing 8-3 Example Scale Operation


     // Create a ParameterBlock and specify the source and
     // parameters
     ParameterBlock pb = new ParameterBlock();
          pb.addSource(im);                   // The source image
          pb.add(1.2);                        // The xScale
          pb.add(1.2);                        // The yScale
          pb.add(0.0F);                       // The x translation
          pb.add(0.0F);                       // The y translation
          pb.add(new InterpolationNearest()); // The interpolation
     // Create the scale operation
     im = JAI.create("scale", pb, null);

8.3.3 Rotation Transformation

The rotate operation rotates an image about a given point by a given angle. Specified x and y values define the coordinate of the source image about which to rotate the image and a rotation angle in radians defines the angle of rotation about the rotation point. If no rotation point is specified, a default of (0,0) is assumed.

A negative rotation value rotates the image counter-clockwise, while a positive rotation value rotates the image clockwise.

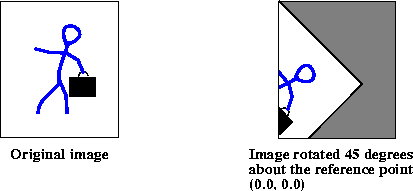

Figure 8-6 Rotate Operation

The rotate operation takes four parameters:

Parameters Type Description
xOrigin
Float
The x origin to rotate about.
yOrigin
Float
The y origin to rotate about.
angle
Float
The rotation angle in radians.
interpolation
Interpolation
The interpolation method for resampling. One of INTERP_NEAREST, INTERP_BILINEAR, INTERP_BICUBIC, or INTERP_BICUBIC2.

When interpolations that require padding the source such as Bilinear or Bicubic interpolation are specified, the boundary of the source image needs to be extended such that it has the extra pixels needed to compute all the destination pixels. This extension is performed via the BorderExtender class. The type of border extension can be specified as a RenderingHint to the JAI.create method. If no border extension type is provided, a default extension of BorderExtender.BORDER_COPY will be used to perform the extension. See Section 3.7.3, "Rendering Hints."

Listing 8-4 shows a code sample for a Rotate operation for a rotation angle of 45 degrees. Since the rotation angle must be specified in radians, the example first converts 45 degrees to radians.

Listing 8-4 Example Rotate Operation


     // Create the rotation angle (45 degrees) and convert to
     // radians.
     int value = 45;
     float angle = (float)(value * (Math.PI/180.0F));
     // Create a ParameterBlock and specify the source and
     // parameters
     ParameterBlock pb = new ParameterBlock();
          pb.addSource(im);                   // The source image
          pb.add(0.0F);                       // The x origin
          pb.add(0.0F);                       // The y origin
          pb.add(angle);                      // The rotation angle
          pb.add(new InterpolationNearest()); // The interpolation
     // Create the rotate operation
     im = JAI.create("Rotate", pb, null);

8.3.4 Affine Transformation

An affine transform is a transformation of an image in which straight lines remain straight and parallel lines remain parallel, but the distance between lines and the angles between lines may change. Affine transformations include translation, scaling, and rotation.

Although there are separate JAI operations to handle translation, scaling, and rotation, the Affine operation can perform any of these transformations or any combination, such as scale and rotate.

The Affine operation performs (possibly filtered) affine mapping between a source and a destination image. For each pixel (x, y) of the destination, the source value at the fractional subpixel position (x', y') is constructed by means of an Interpolation object and written to the destination.

The affine operation takes two parameters:

Parameter Type Description
transform
AffineTransform
The affine transform matrix.
interpolation
Interpolation
The interpolation method for resampling. One of INTERP_NEAREST, INTERP_BILINEAR, INTERP_BICUBIC, or INTERP_BICUBIC2.

The mapping between the destination pixel (x, y) and the source position (x', y') is given by:

where m is a 3 x 2 transform matrix that inverts the matrix supplied as the transform argument.

The six elements of the transform matrix are m00, m01, m02, m10, m11, and m12. The constructor looks like this:

     AffineTransform tr = new AffineTransform(m00, m10,
                                              m01, m11,
                                              m02, m12);
These six elements affect the transformation as follows:

Element Description
m00
The x coordinate scale element
m10
The y coordinate shear element
m01
The x coordinate shear element
m11
The y coordinate scale element
m02
The x coordinate translate element
m12
The y coordinate translate element

The following matrix will translate an image 100 pixels to the right and 200 pixels down:


     AffineTransform tr = new AffineTransform(1.0,
                                              0.0,
                                              0.0,
                                              1.0,
                                              100.0,
                                              200.0);

The following matrix will zoom an image by a factor of 2 in both the x and y directions:


     AffineTransform tr = new AffineTransform(2.0,
                                              0.0,
                                              0.0,
                                              2.0,
                                              0.0,
                                              0.0);

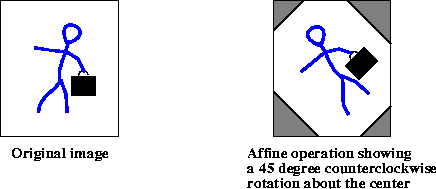

Figure 8-7 Affine Operation

When interpolations that require padding the source such as Bilinear or Bicubic interpolation are specified, the boundary of the source image needs to be extended such that it has the extra pixels needed to compute all the destination pixels. This extension is performed via the BorderExtender class. The type of border extension can be specified as a RenderingHint to the JAI.create method. If no border extension type is provided, a default extension of BorderExtender.BORDER_COPY will be used to perform the extension. See Section 3.7.3, "Rendering Hints."

Listing 8-5 shows a code sample for an Affine operation that performs a 45 degree counterclockwise rotation.

Listing 8-5 Example Affine Transform Operation


     // Load the image.
     String filename = "images/Trees.gif";
     PlanarImage im = (PlanarImage)JAI.create("fileload",
                                               filename);
     // Create the affine transform matrix.
     AffineTransform tr = new AffineTransform(0.707107,
                                             -0.707106,
                                              0.707106,
                                              0.707106,
                                              0.0,
                                              0.0);
     // Specify the type of interpolation.
     Interpolation interp = new InterpolationNearest();
     // Create the affine operation.
     PlanarImage im2 = (PlanarImage)JAI.create("affine", im, tr,
                                                interp);


API: java.awt.geom.AffineTransform

returns a transform representing a translation transformation.

Parameters:

tx

The distance by which coordinates are translated in the x axis direction.

ty

The distance by which coordinates are translated in the y axis direction

returns a transform representing a rotation transformation.

Parameters:

theta

The angle of rotation in radians.

returns a transform that rotates coordinates around an anchor point.

Parameters:

theta

The angle of rotation in radians.

x

The x coordinate of the anchor point of the rotation.

y

The y coordinate of the anchor point of the rotation.

returns a transform representing a scaling transformation.

Parameters:

sx

The factor by which coordinates are scaled along the x axis direction.

sy

The factor by which coordinates are scaled along the y axis direction.

returns a transform representing a shearing transformation.

Parameters:

shx

The multiplier by which coordinates are shifted in the direction of the positive x axis as a factor of their y coordinate.

shy

The multiplier by which coordinates are shifted in the direction of the positive y axis as a factor of their x coordinate.

8.4 Perspective Transformation

Perspective distortions in images are sometimes introduced when the camera is at an angle to the subject. For an example, think of a camera in an aircraft above the earth. If the camera is aimed straight down, the resulting image will be a flat perspective image; that is, no distortion. All objects in the image appear in correct size relative to one another. However, if the camera is angled toward the earth horizon, perspective distortion is introduced. Objects closer to the camera appear larger than same-sized objects farther away from the camera. Perspective distortion has reduced the scale of the objects farthest away.

Perspective distortion can be corrected by applying a perspective transform. The perspective transform maps an arbitrary quadrilateral into another arbitrary quadrilateral, while preserving the straightness of lines. Unlike an affine transformation, the parallelism of lines in the source is not necessarily preserved in the output.

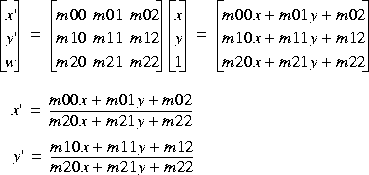

The perspective transform is represented by a 3 x 3 matrix that transforms homogenous source coordinates (x, y, 1) into destination coordinates (x', y', w). To convert back into non-homogenous coordinates, x' and y' are divided by w.

The perspective transform is used with the perspective warp operation. See Section 8.7.7, "Perspective Warp."


API: javax.media.jai.PerspectiveTransform

constructs a new PerspectiveTransform from nine float values.

constructs a new PerspectiveTransform from a one-dimensional array of nine float values, in row-major order.

constructs a new PerspectiveTransform from a two-dimensional array of float values.

constructs a new PerspectiveTransform from nine double values.

constructs a new PerspectiveTransform from a one-dimensional array of nine double values, in row-major order.

constructs a new PerspectiveTransform from a two-dimensional array of double values.

constructs a new PerspectiveTransform with the same effect as an existing AffineTransform.

8.4.1 Performing the Transform

The PerspectiveTransform class contains methods that perform the perspective transform on a specified point, an array of point objects, an array of floating point coordinates, or an array of double precision coordinates.

8.4.2 Mapping a Quadrilateral

The PerspectiveTransform class contains methods that may be used to create a perspective transform that can be used to map a unit square to or from an arbitrary quadrilateral and to map an arbitrary quadrilateral onto another arbitrary quadrilateral. The getSquareToQuad methods map the unit square onto an arbitrary quadrilateral:

(0, 0) (x0, y0)
(1, 0) (x1, y1)
(1, 1) (x2, y2)
(0, 1) (x3, y3)

The getQuadToSquare methods map an arbitrary quadrilateral onto the unit square:

(x0, y0) (0, 0)
(x1, y1) (1, 0)
(x2, y2) (1, 1)
(x3, y3) (0, 1)

The getQuadToQuad methods map an arbitrary quadrilateral onto another arbitrary quadrilateral:

(x0, y0) (x0p, y0p)
(x1, y1) (x1p, y1p)
(x2, y2) (x2p, y2p)
(x3, y3) (x3p, y3p)


API: javax.media.jai.PerspectiveTransform
creates a PerspectiveTransform that maps the unit square onto an arbitrary quadrilateral.

creates a PerspectiveTransform that maps the unit square onto an arbitrary quadrilateral.

creates a PerspectiveTransform that maps an arbitrary quadrilateral onto the unit square.

creates a PerspectiveTransform that maps an arbitrary quadrilateral onto the unit square.

creates a PerspectiveTransform that maps an arbitrary quadrilateral onto another arbitrary quadrilateral.

creates a PerspectiveTransform that maps an arbitrary quadrilateral onto another arbitrary quadrilateral.

8.4.3 Mapping Triangles

The PerspectiveTransform class contains methods that may be used to create a perspective transform that can be used to map one arbitrary triangle to another arbitrary triangle. This is done with one of the getTriToTri methods


API: javax.media.jai.PerspectiveTransform

creates an AffineTransform that maps an arbitrary triangle onto another arbitrary triangle:

(x0, y0) (x0p, y0p)
(x1, y1) (x1p, y1p)
(x2, y2) (x2p, y2p)

creates an AffineTransform that maps an arbitrary triangle onto another arbitrary triangle:

(x0, y0) (x0p, y0p)
(x1, y1) (x1p, y1p)
(x2, y2) (x2p, y2p)

8.4.4 Inverse Perspective Transform

The PerspectiveTransform class contains methods to perform an inverse perspective transform. One of the inverseTransform methods inverse transforms a specified Point2D to another Point2D. Another inverseTransform method inverse transforms an array of double-precision coordinates.


API: javax.media.jai.PerspectiveTransform

inverse transforms the specified ptSrc and stores the result in ptDst. If ptDst is null, a new Point2D object will be allocated before storing. In either case, ptDst containing the transformed point is returned for convenience. Note that ptSrc and ptDst can the same. In this case, the input point will be overwritten with the transformed point.

Parameters:

ptSrc

The point to be inverse transformed.

ptDst

The resulting transformed point.

inverse transforms an array of double precision coordinates by this transform.

Parameters:

srcPts

The array containing the source point coordinates. Each point is stored as a pair of x,y coordinates.

srcOff

The offset to the first point to be transformed in the source array.

dstPts

The array where the transformed point coordinates are returned. Each point is stored as a pair of x,y coordinates.

dstOff

The offset to the location where the first transformed point is stored in the destination array.

numPts

The number of point objects to be transformed.

8.5 Transposing

The Transpose operation is a combination of flipping and rotating. With a Transpose operation, you can (see Figure 8-8):

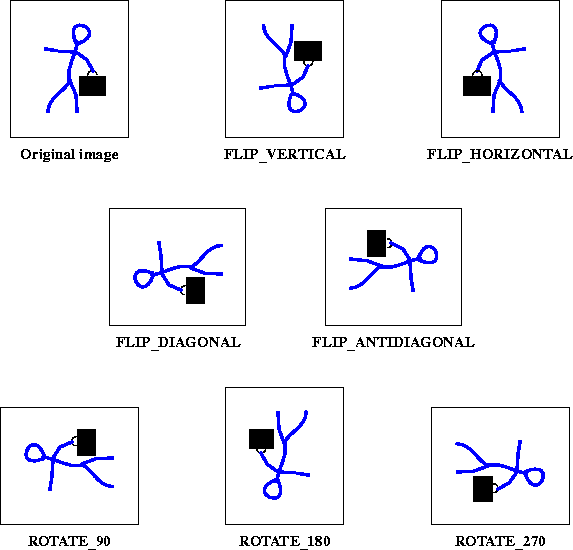

Figure 8-8 Transpose Operations

The transpose operation takes a single parameter:

Parameter Type Description
type
Integer
The type of flip operation to be performed. One of FLIP_VERTICAL, FLIP_HORIZONTAL, FLIP_DIAGONAL, FLIP_ANTIDIAGONAL, ROTATE_90, ROTATE_180, or ROTATE_270

Listing 8-6 shows sample code for creating a Transpose operation. The example performs a horizontal flip on the source image and creates the destination image im2.

Listing 8-6 Example Transpose Operation


     // Create a pattern image.
     ParameterBlock pb = new ParameterBlock();
     pb.add(image);
     PlanarImage im0 = (PlanarImage)JAI.create("awtImage", pb);
     // Transpose type : 0=FLIP_VERTICAL
     //                : 1=FLIP_HORIZONTAL
     //                : 2=FLIP_DIAGONAL
     //                : 3=FLIP_ANTIDIAGONAL
     //                : 4=ROTATE_90
     //                : 5=ROTATE_180
     //                : 6=ROTATE_270
     int type = 1;
     // Create the Transpose operation.
     PlanarImage im2 = (PlanarImage)JAI.create("transpose", im0,
                                               type);

8.6 Shearing

Shearing can be visualized by thinking of an image superimposed onto a flexible rubber sheet. If you hold the sides of the sheet and move them up and down in opposite directions, the image will undergo a spatial stretching known as shearing. The shear operation shears an image either horizontally or vertically.

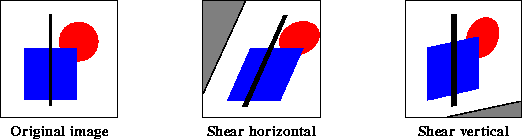

Figure 8-9 Shearing Operations

For each pixel (x, y) of the destination, the source value at the fractional subpixel position (x', y') is constructed by means of an Interpolation object and written to the destination (see "Interpolation" on page 241).

The shear operation takes five parameters:

Parameters Type Description
shear
Float
The shear value.
shearDir
Integer
The shear direction: SHEAR_HORIZONTAL or SHEAR_VERTICAL
xTrans
Float
The x translation.
yTrans
Float
The y translation.
interpolation
Interpolation
The interpolation method for resampling. One of INTERP_NEAREST, INTERP_BILINEAR, INTERP_BICUBIC, or INTERP_BICUBIC2.

For a shearDir parameter of SHEAR_HORIZONTAL:

For a shearDir parameter of SHEAR_VERTICAL:

When interpolations that require padding the source such as Bilinear or Bicubic interpolation are specified, the boundary of the source image needs to be extended such that it has the extra pixels needed to compute all the destination pixels. This extension is performed via the BorderExtender class. The type of border extension can be specified as a RenderingHint to the JAI.create method. If no border extension type is provided, a default extension of BorderExtender.BORDER_COPY will be used to perform the extension. See Section 3.7.3, "Rendering Hints."

Listing 8-7 shows a code sample for a Shear operation.

Listing 8-7 Example Shear Operation


     // Load the image.
     String filename = "images/Picketfence.gif";
     PlanarImage im0 = (PlanarImage)JAI.create("fileload",
                                               filename);
     imagePanel1 = new ScrollingImagePanel(im0, 512, 512);
     // Specify the type of interpolation.
     Interpolation interp = new InterpolationNearest();
     // Set the shear direction:
     //     0 = SHEAR_HORIZONTAL
     //     1 = SHEAR_VERTICAL
     int shear_dir = 1;
     // Set the shear value and the x and y translation values.
     float shear_amt = 0.7F;
     float x_trans = 50.0F;
     float y_trans = 100.0F;
     // Create the Shear operation.
     PlanarImage im2 = (PlanarImage)JAI.create("shear",
                                                im0,
                                                shear_amt,
                                                shear_dir,
                                                x_trans,
                                                y_trans,
                                                interp);
     // Display the image.
     imagePanel2 = new ScrollingImagePanel(im2, 512, 512);
     add(imagePanel2);
     pack();
     show();

8.7 Warping

The linear geometric transformations described in Section 8.3, "Geometric Transformation," cannot introduce curvature in the mapping process. Image warping is a type of geometric transformation that introduces curvature into the mapping process. The introduction of curvature is important when an image has been distorted through lens aberrations and other non-linear processes.

Warping transformations, also known as rubber sheet transformations, can arbitrarily stretch the image about defined points. This type of operation provides a nonlinear transformation between source and destination coordinates.

JAI provides a transformation class, Warp, that is used for non-linear image coordinate transformation. As in the Interpolation class (see Section 8.2, "Interpolation"), pixel positions in the Warp class are represented using fixed-point coordinates, yielding subpixel accuracy but still allowing the use of integer arithmetic. The degree of precision is set by means of the getSubSampleBitsH (horizontal) and getSubSampleBitsV (vertical) parameters to the warpRect method.

The key method of this class is warpRect, which provides the locations of the pixels in source space that map to a given rectangular output region. The output region is specified using normal integer (full pixel) coordinates. The source positions returned by the method are specified in fixed-point, subpixel coordinates.

JAI supports seven warping functions:


API: javax.media.jai.Warp
computes the source subpixel positions for a given rectangular destination region. The destination region is specified using normal integral (full pixel) coordinates. The source positions returned by the method are specified in fixed point, subpixel coordinates using the current value of getSubsampleBitsH() and getSubsampleBitsV().

Parameters:

x

The minimum x coordinate of the destination region.

y

The minimum y coordinate of the destination region.

width

The width of the destination region.

height

The height of the destination region.

subsampleBitsH

The number of fractional bits used to specify horizontal offsets in the warpPositions data.

subsampleBitsV

The number of fractional bits used to specify vertical offsets in the warpPositions data.

destRect

An int array containing at least 2*width*height elements, or null. If null, a new array will be constructed.

As a convenience, an implementation is provided for this method that calls warpSparseRect(). Subclasses may wish to provide their own implementations for better performance.

computes the source subpixel positions for a given rectangular destination region. The destination region is specified using normal integral (full pixel) coordinates. The source positions returned by the method are specified in floating point.

As a convenience, an implementation is provided for this method that calls warpSparseRect(). Subclasses may wish to provide their own implementations for better performance.

computes the source subpixel position for a given destination pixel. The destination pixel is specified using normal integral (full pixel) coordinates. The source position returned by the method is specified in fixed point, subpixel coordinates using the subsampleBitsH and subsampleBitsV parameters.

As a convenience, an implementation is provided for this method that calls warpSparseRect(). Subclasses may wish to provide their own implementations for better performance.

computes the source subpixel position for a given destination pixel. The destination pixel is specified using normal integral (full pixel) coordinates. The source position returned by the method is specified in floating point.

As a convenience, an implementation is provided for this method that calls warpRect(). Subclasses may wish to provide their own implementations for better performance.

computes the source subpixel positions for a given rectangular destination region, subsampled with an integral period. The destination region is specified using normal integral (full pixel) coordinates. The source positions returned by the method are specified in fixed point, subpixel coordinates using the subsampleBitsH and subsampleBitsV parameters.

Parameters:

x

The minimum X coordinate of the destination region.

y

The minimum Y coordinate of the destination region.

width

The width of the destination region.

height

The height of the destination region.

periodX

The horizontal sampling period.

periodY

The horizontal sampling period.

subsample-BitsH

The number of fractional bits used to specify horizontal offsets in the warpPositions data.

subsample-BitsV

The number of fractional bits used to specify vertical offsets in the warpPositions data.

destRect

An int array containing at least

elements, or null. If null, a new array will be constructed.

As a convenience, an implementation is provided for this method that calls warpSparseRect() with a float destRect parameter. Subclasses may wish to provide their own implementations for better performance.

computes the source subpixel positions for a given rectangular destination region, subsampled with an integral period. The destination region is specified using normal integral (full pixel) coordinates. The source positions returned by the method are specified in floating point.

This method is abstract in this class and must be provided in concrete subclasses.

computes a rectangle that is guaranteed to enclose the region of the source that is required in order to produce a given rectangular output region. The routine may return null if it is infeasible to compute such a bounding box.

Parameters:

destRect

The Rectangle in destination coordinates.

The default (superclass) implementation returns null.

8.7.1 Performing a Warp Operation

The Warp operation performs general warping on an image. To create a warp operation:

Listing 8-8 shows a sample code for a simple second-order warp operation.

Listing 8-8 Example of a Second-order Warp


     // Create WarpPolynomial object for a polynomial warp
     // operation.
     WarpPolynomial warp;
          float[] coeffs = { 1.0F, 0.0F, 0.0F, 0.0F, 1.0F, 0.0F };
     // Create the ParameterBlock and add the parameters to it.
     ParameterBlock pb = new ParameterBlock();
          pb.addSource(srcImage);
          pb.add(warp);
          pb.add(new InterpolationNearest());
     // Create the warp operation.
     dstImage = JAI.create("warp", pb);

8.7.2 Polynomial Warp

The WarpPolynomial class provides a polynomial-based description of an image warp. The mapping is defined by two bivariate polynomial functions X(x, y) and Y(x, y) that define the source x and y positions that map to a given destination (x, y) pixel coordinate.

The functions X(x, y) and Y(x, y) have the form:

The WarpPolynomial constructor takes a coeffs parameter that must contain a number of coefficients of the form (n + 1)(n + 2) for some n, where n is the degree power of the polynomial. The coefficients appear in the following order:

with the coefficients of the polynomial defining the source x coordinates appearing before those defining the y coordinates.

The source (x, y) coordinate is pre-scaled by the factors preScaleX and preScaleY prior to the evaluation of the polynomial. The result of the polynomial evaluations are scaled by postScaleX and postScaleY to produce the destination pixel coordinates. This process allows for better precision of the results.

The number of points needed to control the alignment of the image relates directly to the order of warp. Three control points constitute a first-order warp. Six points constitute a second-order warp. The number of points required for each degree of warp are as follows:

Degree of Warp Number of Points
1
3
2
6
3
10
4
15
5
21
6
28
7
36


API: javax.media.jai.WarpPolynomial

constructs a WarpPolynomial with pre- and post-scale factors of 1.

Parameters:

coeffs

The destination to source transform coefficients.

constructs a WarpPolynomial with a given transform mapping destination pixels into source space. Note that this is the inverse of the customary specification of the mapping of an image.

Parameters:

coeffs

The destination-to-source transform coefficients.

preScaleX

The scale factor to apply to source x positions.

preScaleY

The scale factor to apply to source y positions.

postScaleX

The scale factor to apply to destination x positions.

postScaleY

The scale factor to apply to destination y positions.

returns the raw coefficients array.

returns the degree of the warp polynomials.

returns an instance of WarpPolynomial or its subclasses that approximately maps the given scaled destination image coordinates into the given scaled source image coordinates.

Parameters:

sourceCoords

An array of floats containing the source coordinates with x and y alternating.

sourceOffset

The initial entry of sourceCoords to be used.

destCoords

An array of floats containing the destination coordinates with x and y alternating.

destOffset

The initial entry of destCoords to be used.

numCoords

The number of coordinates from sourceCoords and destCoords to be used.

preScaleX

The scale factor to apply to source x positions.

preScaleY

The scale factor to apply to source y positions.

postScaleX

The scale factor to apply to destination x positions.

postScaleY

The scale factor to apply to destination y positions.

degree

The desired degree of the warp polynomials.

8.7.3 General Polynomial Warp

The WarpGeneralPolynomial class provides a concrete implementation of WarpPolynomial for polynomials of a higher degree.

The mapping is defined by two bivariate polynomial functions X(x, y) and Y(x, y) that define the source X and Y positions that map to a given destination (x, y) pixel coordinate.

The functions X(x, y) and Y(x, y) have the form:

The xCoeffs and yCoeffs parameters must contain the same number of coefficients of the form (n + 1)(n + 2)/2 for some n, where n is the non-negative degree power of the polynomial. The coefficients, in order, are associated with the terms:

1, x, y, x2, x*y, y2, ..., xn, x(n - 1)*y, ..., x*y(n - 1), yn

and coefficients of value 0 can not be omitted.

The destination pixel coordinates (the arguments to the X() and Y() functions) are given in normal integral pixel coordinates, while the output of the functions is given in fixed-point, subpixel coordinates with a number of fractional bits specified by the subsampleBitsH and subsampleBitsV parameters.


API: javax.media.jai.WarpGeneralPolynomial

constructs a WarpGeneralPolynomial with pre- and post-scale factors of 1.

Parameters:

xCoeffs

The destination to source transform coefficients for the x coordinate.

yCoeffs

The destination to source transform coefficients for the y coordinate.

constructs a WarpGeneralPolynomial with a given transform mapping destination pixels into source space. Note that this is the inverse of the customary specification of the mapping of an image.

Parameters:

xCoeffs

The destination to source transform coefficients for the x coordinate.

yCoeffs

The destination to source transform coefficients for the y coordinate.

preScaleX

The scale factor to apply to source x positions.

preScaleY

The scale factor to apply to source y positions.

postScaleX

The scale factor to apply to destination x positions.

postScaleY

The scale factor to apply to destination y positions.

computes the source subpixel positions for a given rectangular destination region, subsampled with an integral period.

Parameters:

x

The minimum X coordinate of the destination region.

y

The minimum Y coordinate of the destination region.

width

The width of the destination region.

height

The height of the destination region.

periodX

The horizontal sampling period.

periodY

The horizontal sampling period.

destRect

An int array containing at least

elements, or null. If null, a new array will be constructed.

8.7.4 Grid Warp

If polynomial warping is impractical, the image may be warped in pieces using grid warping, also known as control grid interpolation. In the most common implementation of grid warping, specified input control points form a grid of contiguous, horizontally-oriented rectangles in the output image. The mapping from destination pixels to source positions is described by bilinear interpolation between a rectilinear grid of points with known mappings.

Given a destination pixel coordinate (x, y) that lies within a cell having corners at (x0, y0), (x1, y0), (x0, y1), and (x1, y1), with source coordinates defined at each respective corner equal to (sx0, sy0), (sx1, sy1), (sx2, sy2), and (sx3, sy3), the source position (sx, sy) that maps onto (x, y) is given by the following equations:

The source x and y values are interpolated horizontally along the top and bottom edges of the grid cell, and the results are interpolated vertically, as shown in Figure 8-10.



Figure 8-10 Warp Grid

The grid is defined by a set of equal-sized cells starting at (xStart, yStart). The width of each cell is defined by the xStep parameter and the height is defined by the yStep parameter. There are xNumCells cells horizontally and yNumCells cells vertically.

The degree of warping within each cell is defined by the values in the warpPositions parameter. This parameter must contain the following values:

These values alternately contain the source x and y coordinates that map to the upper-left corner of each cell in the destination image. The cells are enumerated in row-major order, that is, all the grid points along a row are enumerated first, then the gird points for the next row are enumerated, and so on.

For example, if xNumCells is 2 and yNumCells is 1, the order of the data in the table would be as follows:

     x00, y00, x10, y10, x20, y20, x01, y01, x11, y11, x21, y21
for a total of 2(2 + 1)(1 + 1) = 12 elements.


API: javax.media.jai.WarpGrid

constructs a WarpGrid with a given grid-based transform mapping destination pixels into source space. Note that this is the inverse of the customary specification of the mapping of an image.

Parameters:

xStart

The minimum x coordinate of the grid.

xStep

The horizontal spacing between grid cells.

xNumCells

The number of grid cell columns.

yStart

The minimum y coordinate of the grid.

yStep

The vertical spacing between grid cells.

yNumCells

The number of grid cell rows.

warp-Positions

A float array of length

containing the warp positions at the grid points in row-major order.

constructs a WarpGrid object by sampling the displacements given by another Warp object of any kind.

Parameters:

master

The Warp object used to initialized the grid displacements.

xStart

The minimum x coordinate of the grid.

xStep

The horizontal spacing between grid cells.

xNumCells

The number of grid cell columns.

yStart

The minimum y coordinate of the grid.

yStep

The vertical spacing between grid cells.

yNumCells

The number of grid cell rows.

computes the source subpixel positions for a given rectangular destination region. The destination region is specified using normal integer (full pixel) coordinates. The source positions returned by the method are specified in fixed point, subpixel coordinates using the of subsampleBitsH and subsampleBitsV parameters.

Parameters:

x

The minimum x coordinate of the destination region.

y

The minimum y coordinate of the destination region.

width

The width of the destination region.

height

The height of the destination region.

periodX

The horizontal sampling period.

periodY

The vertical sampling period.

destRect

An int array containing at least

elements, or null. If null, a new array will be constructed.

8.7.5 Quadratic Warp

The WarpQuadratic class provides a quadratic-based description of an image warp. The source position (x', y') of a point (x, y) is given by the following quadratic bivariate polynomial:


API: javax.media.jai.WarpQuadratic
constructs a WarpQuadratic with a given transform mapping destination pixels into source space. Note that this is the inverse of the customary specification of the mapping of an image. The coeffs arrays must each contain six floats corresponding to the coefficients c1, c2, etc. as shown in the class comment..

Parameters:

xCoeffs

The six destination-to-source transform coefficients for the x coordinate.

yCoeffs

The six destination-to-source transform coefficients for the y coordinate.

preScaleX

The scale factor to apply to source x positions.

preScaleY

The scale factor to apply to source y positions.

postScaleX

The scale factor to apply to destination x positions.

postScaleY

The scale factor to apply to destination y positions.

constructs a WarpQuadratic with pre- and post-scale factors of 1.

computes the source subpixel positions for a given rectangular destination region, subsampled with an integral period. The destination region is specified using normal integral (full pixel) coordinates. The source positions returned by the method are specified in floating point.

Parameters:

x

The minimum x coordinate of the destination region.

y

The minimum y coordinate of the destination region.

width

The width of the destination region.

height

The height of the destination region.

periodX

The horizontal sampling period.

periodY

The vertical sampling period.

destRect

A float array containing at least

elements, or null. If null, a new array will be constructed.

8.7.6 Cubic Warp

The WarpCubic class performs a cubic-based image warp. The source position (x', y') of a point (x, y) is given by the following cubic polynomial:


API: javax.media.jai.WarpCubic
constructs a WarpCubic with a given transform mapping destination pixels into source space. Note that this is the inverse of the customary specification of the mapping of an image. The coeffs array must contain 12 floats corresponding to the coefficients a, b, etc. as shown in the class comment.

Parameters:

xCoeffs

The ten destination to source transform coefficients for the x coordinate.

yCoeffs

The ten destination to source transform coefficients for the y coordinate.

preScaleX

The scale factor to apply to source x positions.

preScaleY

The scale factor to apply to source y positions.

postScaleX

The scale factor to apply to destination x positions.

postScaleY

The scale factor to apply to destination y positions.

constructs a WarpCubic with pre- and post-scale factors of 1.

computes the source subpixel positions for a given rectangular destination region, subsampled with an integral period.

Parameters:

x

The minimum x coordinate of the destination region.

y

The minimum y coordinate of the destination region.

width

The width of the destination region.

height

The height of the destination region.

periodX

The horizontal sampling period.

periodY

The vertical sampling period.

destRect

A float array containing at least

elements, or null. If null, a new array will be constructed.

8.7.7 Perspective Warp

Perspective distortions in images caused by camera-to-target viewing angle can be restored through perspective warping. Perspective distortion appears as the reduction in scale of an object that recedes from the foreground into the background of the image.

The WarpPerspective class provides a perspective (projective) warp. The transform is specified as a mapping from destination space to source space. In other words, it is the inverse of the normal specification of a perspective image transformation. See Section 8.4, "Perspective Transformation," for a description of the PerspectiveTransform class.


API: javax.media.jai.WarpPerspective

constructs a WarpPerspective with a given transform mapping destination pixels into source space. Note that this is the inverse of the customary specification of perspective mapping of an image.

Parameters:

transform

The destination-to-source transform.

returns a clone of the PerspectiveTransform associated with this WarpPerspective object.

computes the source subpixel positions for a given rectangular destination regions subsampled with an integral period. The destination region is specified using normal integral (full pixel) coordinates. The source positions returned by the method are specified in floating-point.

Parameters:

x

The minimum x coordinate of the destination region.

y

The minimum y coordinate of the destination region.

width

The width of the destination region.

height

The height of the destination region.

periodX

The horizontal sampling period.

periodY

The vertical sampling period.

destRect

A float array containing at least

elements, or null. If null, a new array will be constructed.

8.7.8 Affine Warp

The WarpAffine class provides an affine-based warp. The transform is specified as a mapping from destination space to source space. In other words, it is the inverse of the normal specification of an affine image transformation.

The source position (x', y') of a point (x, y) is given by the quadratic bivariate polynomial:

Listing 8-9 shows a code sample for an affine-based warp operation.

Listing 8-9 Example Affine Warp


     // Create the transform parameter (WarpAffine).
     double m00 = 0.8;
     double m10 = 0.3;
     double m01 = -0.7;
     double m11 = 1.4;
     double m02 = 230.3;
     double m12 = -115.7;
     AffineTransform transform = new AffineTransform(m00, m10,
                                                     m01, m11,
                                                     m02, m12);
     Warp warp = new WarpAffine(transform);
     // Create the interpolation parameter.
     Interpolation interp = new InterpolationNearest(8);
     // Create the ParameterBlock.
     ParameterBlock pb = new ParameterBlock();
     pb.addSource(src);
     pb.add(warp);
     pb.add(interp);
     // Create the warp operation.
     return (RenderedImage)JAI.create("warp", pb);


API: javax.media.jai.WarpAffine

constructs a WarpAffine with a given transform mapping destination pixels into source space. The transform is given by:

        x' = xCoeffs[0] + xCoeffs[1]*x + xCoeffs[2]*y;
        y' = yCoeffs[0] + yCoeffs[1]*x + yCoeffs[2]*y;
where x' and y' are the source image coordinates and x and y are the destination image coordinates.

Parameters:

xCoeffs

The three destination-to-source transform coefficients for the x coordinate.

yCoeffs

The three destination-to-source transform coefficients for the y coordinate.

preScaleX

The scale factor to apply to source x positions.

preScaleY

The scale factor to apply to source y positions.

postScaleX

The scale factor to apply to destination x positions.

postScaleY

The scale factor to apply to destination y positions.

constructs a WarpAffine with pre- and post-scale factors of 1.

constructs a WarpAffine with a given transform mapping destination pixels into source space.

Parameters:

transform

The destination-to-source transform.

preScaleX

The scale factor to apply to source x positions.

preScaleY

The scale factor to apply to source y positions.

postScaleX

The scale factor to apply to destination x positions.

postScaleY

The scale factor to apply to destination y positions.

constructs a WarpAffine with pre- and post-scale factors of 1.

Parameters:

transform

An AffineTransform.

returns a clone of the AffineTransform associated with this WarpAffine object.

computes the source subpixel positions for a given rectangular destination region, subsampled with an integral period. The destination region is specified using normal integral (full pixel) coordinates. The source positions returned by the method are specified in floating point.

Parameters:

x

The minimum x coordinate of the destination region.

y

The minimum y coordinate of the destination region.

width

The width of the destination region.

height

The height of the destination region.

periodX

The horizontal sampling period.

periodY

The vertical sampling period.

destRect

A float array containing at least

elements, or null. If null, a new array will be constructed.

computes a Rectangle that is guaranteed to enclose the region of the source that is required in order to produce a given rectangular output region.

Parameter:

destRect

The Rectangle in destination coordinates.



Contents Previous Next

Programming in Java Advanced Imaging


Copyright © 1999, Sun Microsystems, Inc. All rights reserved.

Casa de Bender
