Programming in Java Advanced Imaging
C H A P T E R4 |
Image Acquisition and Display |
THIS chapter describes the Java Advanced Imaging (JAI) API image data types and the API constructors and methods for image acquisition and display.
4.1 Introduction
All imaging applications must perform the basic tasks of acquiring, displaying, and creating (recording) images. Images may be acquired from many sources, including a disk file, the network, a CD, and so on. Images may be acquired, processed, and immediately displayed, or written to a disk file for display at a later time.As described in Chapter 3, JAI offers the programmer the flexibility to render and display an image immediately or to defer the display of the rendered image until there is a specific request for it.
Image acquisition and display are relatively easy in JAI, in spite of all the high-level information presented in the next several sections. Take for example, the sample code in Listing 4-1. This is a complete code example for a simple application called
FileTest
, which takes a single argument; the path and name of the file to read.FileTest
reads the named file and displays it in aScrollingImagePanel
. The operator that reads the image file,FileLoad
, is described in Section 4.4.1.2, "The FileLoad Operation." TheScrollingImagePanel
is described in Section 4.8, "Image Display."
Listing 4-1 Example Program to Read and Display an Image File
// Specify the classes to import. import java.awt.image.renderable.ParameterBlock; import java.io.File; import javax.media.jai.JAI; import javax.media.jai.PlanarImage; import javax.media.jai.RenderedOp; import javax.media.jai.widget.ScrollingImagePanel; public class FileTest extends WindowContainer { // Specify a default image in case the user fails to specify // one at run time. public static final String DEFAULT_FILE = "./images/earth.jpg"; public static void main(String args[]) { String fileName = null; // Check for a filename in the argument. if(args.length == 0) { fileName = DEFAULT_FILE; } else if(args.length == 1) { fileName = args[0]; } else { System.out.println("\nUsage: java " + (new FileTest()).getClass().getName() + " [file]\n"); System.exit(0); } new FileTest(fileName); } public FileTest() {} public FileTest(String fileName) { // Read the image from the designated path. System.out.println("Creating operation to load image from '" + fileName+"'"); RenderedOp img = JAI.create("fileload", fileName); // Set display name and layout. setTitle(getClass().getName()+": "+fileName); // Display the image. System.out.println("Displaying image"); add(new ScrollingImagePanel(img, img.getWidth(), img.getHeight())); pack(); show(); } }
4.1.1 Image Data
Image data is, conceptually, a three-dimensional array of pixels, as shown in Figure 4-1. Each of the three arrays in the example is called a band. The number of rows specifies the image height of a band, and the number of columns specifies the image width of a band.Monochrome images, such as a grayscale image, have only one band. Color images have three or more bands, although a band does not necessarily have to represent color. For example, satellite images of the earth may be acquired in several different spectral bands, such as red, green, blue, and infrared.
In a color image, each band stores the red, green, and blue (RGB) components of an additive image, or the cyan, magenta, and yellow (CMY) components of a three-color subtractive image, or the cyan, magenta, yellow, and black (CMYK) components of a four-color subtractive image. Each pixel of an image is composed of a set of samples. For an RGB pixel, there are three samples; one each for red, green, and blue.
An image is sampled into a rectangular array of pixels. Each pixel has an (x,y) coordinate that corresponds to its location within the image. The x coordinate is the pixel's horizontal location; the y coordinate is the pixel's vertical location. Within JAI, the pixel at location (0,0) is in the upper left corner of the image, with the x coordinates increasing in value to the right and y coordinates increasing in value downward. Sometimes the x coordinate is referred to as the pixel number and the y coordinate as the line number.

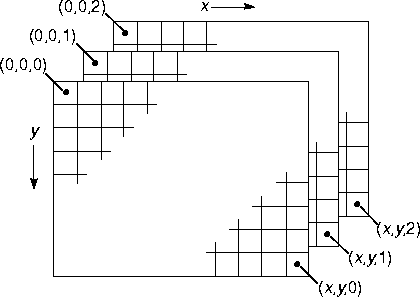

Figure 4-1 Multi-band Image Structure
4.1.2 Basic Storage Types
In the JAI API, the basic unit of data storage is theDataBuffer
object. TheDataBuffer
object is a kind of raw storage that holds all the samples that make up the image, but does not contain any information on how those samples are put together as pixels. How the samples are put together is contained in aSampleModel
object. TheSampleModel
class contains methods for deriving pixel data from aDataBuffer
.JAI supports several image data types, so the
DataBuffer
class has the following subclasses, each representing a different data type:
DataBufferByte
- stores data internally as bytes (8-bit values)
DataBufferShort
- stores data internally as shorts (16-bit values)
DataBufferUShort
- stores data internally as unsigned shorts (16-bit values)
DataBufferInt
- stores data internally as integers (32-bit values)
DataBufferFloat
- stores data internally as single-precision floating-point values.Table 4-1 lists the
DataBufferDouble
- stores data internally as double-precision floating-point values.DataBuffer
type elements.
JAI also supports a large number of image data formats, so the
SampleModel
class provides the following types of sample models:
ComponentSampleModel
- used to extract pixels from images that store sample data in separate data array elements in one bank of aDataBuffer
object.
ComponentSampleModelJAI
- used to extract pixels from images that store sample data such that each sample of a pixel occupies one data element of theDataBuffer
.
BandedSampleModel
- used to extract pixels from images that store each sample in a separate data element with bands stored in a sequence of data elements.
PixelInterleavedSampleModel
- used to extract pixels from images that store each sample in a separate data element with pixels stored in a sequence of data elements.
MultiPixelPackedSampleModel
- used to extract pixels from single-banded images that store multiple one-sample pixels in one data element.
SinglePixelPackedSampleModel
- used to extract samples from images that store sample data for a single pixel in one data array element in the first bank of aDataBuffer
object.The combination of a
FloatComponentSampleModel
- stores n samples that make up a pixel in n separate data array elements, all of which are in the same bank in aDataBuffer
object. This class supports different kinds of interleaving.DataBuffer
object, aSampleModel
object, and an origin constitute a meaningful multi-pixel image storage unit called aRaster
. TheRaster
class has methods that directly return pixel data for the image data it contains.There are two basic
Raster
types:
Raster
- represents a rectangular array of pixels. This is a "read-only" class that only has get methods.There are separate interfaces for dealing with each raster type:
WritableRaster
- extendsRaster
to provide pixel writing capabilities.
- The
RenderedImage
interface assumes the data is read-only and, therefore, does not contain methods for writing aRaster
.A
- The
WriteableRenderedImage
interfaces assumes that the image data can be modified.ColorModel
class provides a color interpretation of pixel data provided by the image's sample model. The abstractColorModel
class defines methods for turning an image's pixel data into a color value in its associatedColorSpace

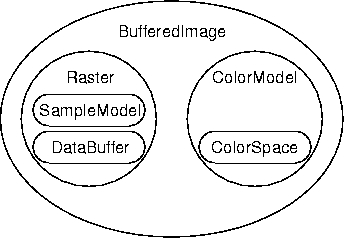

. See Section 5.2.1, "Color Models."As shown in Figure 4-2, the combination of a
Raster
and aColorModel
define aBufferedImage
. TheBufferedImage
class provides general image management for immediate mode imaging.The
BufferedImage
class supports the following predefined image types:
4.2 JAI Image Types
The JAI API provides a set of classes for describing image data of various kinds. These classes are organized into a class hierarchy, as shown in Figure 4-3.

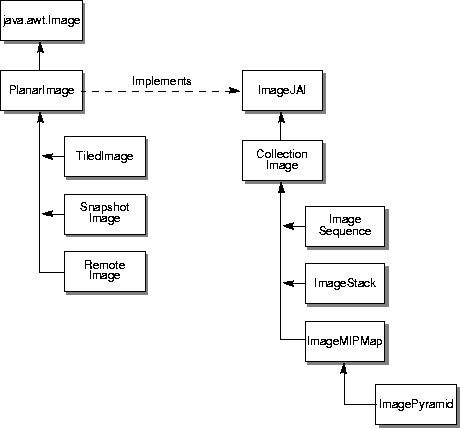

Figure 4-3 JAI Image Type Hierarchy
4.2.1 Planar Image
ThePlanarImage
class is the main class for defining two-dimensional images. ThePlanarImage
implements thejava.awt.image.RenderedImage
interface, which describes a tiled, read-only image with a pixel layout described by aSampleModel
and aDataBuffer
. TheTiledImage
andOpImage
subclasses manipulate the instance variables they inherit fromPlanarImage
, such as the image size, origin, tile dimensions, and tile grid offsets, as well as the Vectors containing the sources and sinks of the image.All non-JAI
RenderedImages
that are to be used in JAI must be converted intoPlanarImages
by means of theRenderedImageAdapter
class and theWriteableRenderedImageAdapter
class. ThewrapRenderedImage()
method provides a convenient interface to both add a wrapper and take a snapshot if the image is writable. The standardPlanarImage
constructor used byOpImages
performs this wrapping automatically. Images that already extendPlanarImage
will be returned unchanged bywrapRenderedImage()
.Going in the other direction, existing code that makes use of the
RenderedImage
interface will be able to usePlanarImage
s directly, without any changes or recompilation. Therefore within JAI, images are returned from methods asPlanarImages
, even though incomingRenderedImage
s are accepted as arguments directly.
API:javax.media.jai.PlanarImage
- PlanarImage()
- creates a
PlanarImage
.
- static PlanarImage wrapRenderedImage(RenderedImage im)
- wraps an arbitrary
RenderedImage
to produce aPlanarImage
.PlanarImage
adds various properties to an image, such as source and sink vectors and the ability to produce snapshots, that are necessary for JAI. If the image is not aPlanarImage
, it is wrapped in aRenderedImageAdapter
. If the image implementsWritableRenderedImage
, a snapshot is taken.
Parameters: a
RenderedImage
to be used as a synchronous source.
- PlanarImage createSnapshot()
- creates a snapshot, that is, a virtual copy of the image's current contents.
- Raster getData(Rectangle region)
- returns a specified region of this image in a
Raster
.
Parameter: region
The rectangular region of this image to be returned.
- int getWidth()
- returns the width of the image.
- int getHeight()
- returns the height of the image.
- int getMinXCoord()
- returns the X coordinate of the leftmost column of the image.
- int getMaxXCoord()
- returns the X coordinate of the rightmost column of the image.
- int getMinYCoord()
- returns the X coordinate of the uppermost row of the image.
- int getMaxYCoord()
- returns the X coordinate of the bottom row of the image.
- Rectangle getBounds()
- returns a Rectangle indicating the image bounds.
- int getTileWidth()
- returns the width of a tile.
- int getTileHeight()
- returns the height of a tile.
- int tilesAcross()
- returns the number of tiles along the tile grid in the horizontal direction. Equivalent to
getMaxTileX() - getMinTileX() + 1
.
- int tilesDown()
There are lots more methods.
- returns the number of tiles along the tile grid in the vertical direction. Equivalent to
getMaxTileY() - getMinTileY() + 1
.
4.2.2 Tiled Image
The JAI API expands on the tile data concept introduced in the Java 2D API. In Java 2D, a tile is one of a set of rectangular regions that span an image on a regular grid. The JAI API expands on the tile image with theTiledImage
class, which is the main class for writable images in JAI.A tile represents all of the storage for its spatial region of the image. If an image contains three bands, every tile represents all three bands of storage. The use of tiled images improves application performance by allowing the application to process an image region within a single tile without bringing the entire image into memory.
TiledImage
provides a straightforward implementation of theWritableRenderedImage
interface, taking advantage of that interface's ability to describe images with multiple tiles. The tiles of aWritableRenderedImage
must share aSampleModel
, which determines their width, height, and pixel format.The tiles form a regular grid that may occupy any rectangular region of the plane. Tile pixels that exceed the image's stated bounds have undefined values.
The contents of a
TiledImage
are defined by a singlePlanarImage
source, provided either at construction time or by means of theset()
method. Theset()
method provides a way to selectively overwrite a portion of aTiledImage
, possibly using a soft-edged mask.
TiledImage
also supports direct manipulation of pixels by means of thegetWritableTile
method. This method returns aWritableRaster
that can be modified directly. Such changes become visible to readers according to the regular thread synchronization rules of the Java virtual machine; JAI makes no additional guarantees. When a writer is finished modifying a tile, it should call thereleaseWritableTile
method. A shortcut is to call thesetData()
method, which copies a rectangular region from a suppliedRaster
directly into theTiledImage
.A final way to modify the contents of a
TiledImage
is through calls to thecreateGraphics()
method. This method returns aGraphicsJAI
object that can be used to draw line art, text, and images in the usual AWT manner.A
TiledImage
does not attempt to maintain synchronous state on its own. That task is left toSnapshotImage
. If a synchronous (unchangeable) view of aTiledImage
is desired, itscreateSnapshot()
method must be used. Otherwise, changes due to calls toset()
or direct writing of tiles by objects that callgetWritableTile()
will be visible.
TiledImage
does not actually cause its tiles to be computed until their contents are demanded. Once a tile has been computed, its contents may be discarded if it can be determined that it can be recomputed identically from the source. ThelockTile()
method forces a tile to be computed and maintained for the lifetime of theTiledImage
.
API:javax.media.jai.TiledImage
- TiledImage(Point origin, SampleModel sampleModel, int tileWidth, int tileHeight)
- constructs a
TiledImage
with aSampleModel
that is compatible with a givenSampleModel
, and given tile dimensions. The width and height are taken from theSampleModel
, and the image begins at a specified point.
Parameters: origin
A Point indicating the image's upper left corner.
sampleModel
A SampleModel with which to be compatible.
tileWidth
The desired tile width.
tileHeight
The desired tile height.
- TiledImage(SampleModel sampleModel, int tileWidth, int tileHeight)
- constructs a
TiledImage
starting at the global coordinate origin.
Parameters: sampleModel
A SampleModel
with which to be compatible.
tileWidth
The desired tile width.
tileHeight
The desired tile height.
- TiledImage(int minX, int minY, int width, int height, int tileGridXOffset, int tileGridYOffset, SampleModel sampleModel, ColorModel colorModel)
- constructs a
TiledImage
of a specified width and height.
Parameters: minX
The index of the leftmost column of tiles.
minY
The index of the uppermost row of tiles.
width
The width of the TiledImage
.
height
The height of the TiledImage
.
tileGridX-Offset
The x coordinate of the upper-left pixel of tile (0, 0).
tileGridY-Offset
The y coordinate of the upper-left pixel of tile (0, 0).
sampleModel
a SampleModel
with which to be compatible.
colorModel
A ColorModel
to associate with the image.
- void setData(Raster r)
- sets a region of a
TiledImage
to be a copy of a suppliedRaster
. TheRaster
's coordinate system is used to position it within the image. The computation of all overlapping tiles will be forced prior to modification of the data of the affected area.
Parameter: r
A Raster
containing pixels to be copied into theTiledImage
.
- void setData(Raster r, ROI roi)
- sets a region of a
TiledImage
to be a copy of a suppliedRaster
. TheRaster
's coordinate system is used to position it within the image. The computation of all overlapping tiles will be forced prior to modification of the data of the affected area.
- WritableRaster getWritableTile(int tileX, int tileY)
- retrieves a particular tile from the image for reading and writing. The tile will be computed if it hasn't been previously. Writes to the tile will become visible to readers of this image in the normal Java manner.
Parameters: tileX
The x index of the tile.
tileY
The y index of the tile.
- Raster getTile(int tileX, int tileY)
- retrieves a particular tile from the image for reading only. The tile will be computed if it hasn't been previously. Any attempt to write to the tile will produce undefined results.
Parameters: tileX
The x index of the tile.
tileY
The y index of the tile.
- boolean isTileWritable(int tileX, int tileY)
- returns true if a tile has writers.
Parameters: tileX
The x index of the tile.
tileY
The y index of the tile.
- boolean hasTileWriters()
- returns true if any tile is being held by a writer, false otherwise. This provides a quick way to check whether it is necessary to make copies of tiles - if there are no writers, it is safe to use the tiles directly, while registering to learn of future writers.
- void releaseWritableTile(int tileX, int tileY)
- indicates that a writer is done updating a tile. The effects of attempting to release a tile that has not been grabbed, or releasing a tile more than once are undefined.
Parameters: tileX
The x index of the tile.
tileY
The y index of the tile.
- void set(RenderedImage im)
- overlays a given
RenderedImage
on top of the current contents of theTiledImage
. The source image must have aSampleModel
compatible with that of this image.
Parameters: im
A RenderedImage
source to replace the current source.
- void set(RenderedImage im, ROI roi)
- overlays a given
RenderedImage
on top of the current contents of theTiledImage
. The source image must have aSampleModel
compatible with that of this image.
Parameters: im
A RenderedImage
source to replace the current source.
roi
The region of interest.
- Graphics2D createGraphics()
- creates a
Graphics2D
object that can be used to paint text and graphics onto theTiledImage
.4.2.2.1 Tile Cache
TheTileCache
interface provides a central place forOpImage
s to cache tiles they have computed. The tile cache is created with a given capacity (measured in tiles). By default, the tile capacity for a new tile cache is 300 tiles. The default memory capacity reserved for tile cache is 20M bytes.The
TileCache
to be used by a particular operation may be set during construction, or by calling theJAI.setTileCache
method. This results in the provided tile cache being added to the set of common rendering hints.The
TileScheduler
interface allows tiles to be scheduled for computation. In various implementations, tile computation may make use of multithreading and multiple simultaneous network connections for improved performance.
API:javax.media.jai
- static TileCache createTileCache(int tileCapacity, long memCapacity)
- constructs a
TileCache
with the given tile capacity in tiles and memory capacity in bytes. Users may supply an instance ofTileCache
to an operation by supplying aRenderingHint
with aJAI.KEY_TILE_CACHE
key and the desiredTileCache
instance as its value. Note that the absence of a tile cache hint will result in the use of theTileCache
belonging to the defaultJAI
instance. To force an operation not to perform caching, aTileCache
instance with a tile capacity of 0 may be used.
Parameters tileCapacity
The tile capacity, in tiles.
memCapacity
The memory capacity, in bytes.
- static TileCache createTileCache()
- constructs a
TileCache
with the default tile capacity in tiles and memory capacity in bytes.
- void setTileCache(TileCache tileCache)
- sets the
TileCache
to be used by thisJAI
instance. ThetileCache
parameter will be added to theRenderingHints
of this JAI instance.
- TileCache getTileCache()
- returns the
TileCache
being used by thisJAI
instance.4.2.2.2 Pattern Tiles
A pattern tile consists of a repeated pattern. Thepattern
operation defines a pattern tile by specifying the width and height; all other layout parameters are optional, and when not specified are set to default values. Each tile of the destination image will be defined by a reference to a shared instance of the pattern.The
pattern
operation takes three parameters:
Parameter Type Description width Integer The width of the image in pixels.
height Integer The height of the image in pixels.
pattern Raster The Pattern pixel band values.
Listing 4-2 shows a code sample for a
pattern
operation.
Listing 4-2 Example Pattern Operation
// Create the raster. WritableRaster raster; int[] bandOffsets = new int[3]; bandOffsets[0] = 2; bandOffsets[1] = 1; bandOffsets[2] = 0; // width, height=64. PixelInterleavedSampleModel sm; sm = new PixelInterleavedSampleModel(DataBuffer.TYPE_BYTE, 100, 100, 3, 3*100, bandOffsets); // Origin is 0,0. WritableRaster pattern = Raster.createWritableRaster(sm, new Point(0, 0)); int[] bandValues = new int[3]; bandValues[0] = 90; bandValues[1] = 45; bandValues[2] = 45 // Set values for the pattern raster. for (int y = 0; y < pattern.getHeight(); y++) { for (int x = 0; x < pattern.getWidth(); x++) { pattern.setPixel(x, y, bandValues); bandValues[1] = (bandValues[1]+1)%255; bandValues[2] = (bandValues[2]+1)%255; } } // Create a 100x100 image with the given raster. PlanarImage im0 = (PlanarImage)JAI.create("pattern", 100, 100, pattern);
4.2.3 Snapshot Image
TheSnapshotImage
class represents the main component of the deferred execution engine. ASnapshotImage
provides an arbitrary number of synchronous views of a possibly changingWritableRenderedImage
.SnapshotImage
is responsible for stabilizing changing sources to allow deferred execution of operations dependent on such sources.Any
RenderedImage
may be used as the source of aSnapshotImage
. If the source is aWritableRenderedImage
, theSnapshotImage
will register itself as aTileObserver
and make copies of tiles that are about to change.Multiple versions of each tile are maintained internally, as long as they are in demand.
SnapshotImage
is able to track demand and should be able to simply forward requests for tiles to the source most of the time, without the need to make a copy.When used as a source, calls to
getTile
will simply be passed along to the source. In other words,SnapshotImage
is completely transparent. However, by callingcreateSnapshot()
an instance of a non-publicPlanarImage
subclass (calledSnapshot
in this implementation) will be created and returned. This image will always return tile data with contents as of the time of its construction.
4.2.3.1 Creating a SnapshotImage
This implementation ofSnapshotImage
makes use of a doubly-linked list ofSnapshot
objects. A newSnapshot
is added to the tail of the list whenevercreateSnapshot()
is called. EachSnapshot
has a cache containing copies of any tiles that were writable at the time of its construction, as will as any tiles that become writable between the time of its construction and the construction of the nextSnapshot
.
4.2.3.2 Using SnapshotImage with a Tile
When asked for a tile, aSnapshot
checks its local cache and returns its version of the tile if one is found. Otherwise, it forwards the request onto its successor. This process continues until the latest Snapshot is reached; if it does not contain a copy of the tile, the tile is requested from the real source image.
API:javax.media.jai.SnapShotImage
- SnapshotImage(PlanarImage source)
- constructs a
SnapshotImage
from aPlanarImage
source.
Parameters: source
a PlanarImage
source.
- Raster getTile(int tileX, int tileY)
- returns a non-snapshotted tile from the source.
Parameters: tileX
the X index of the tile.
tileY
the Y index of the tile.
- void tileUpdate(java.awt.image.WritableRenderedImage source, int tileX, int tileY, boolean willBeWritable)
- receives the information that a tile is either about to become writable, or is about to become no longer writable.
Parameters: source
the WritableRenderedImage
for which we are an observer.
tileX
the x index of the tile.
tileY
the y index of the tile.
willBeWrit-able
true if the tile is becoming writable.
- PlanarImage createSnapshot()
- creates a snapshot of this image. This snapshot may be used indefinitely, and will always appear to have the pixel data that this image has currently. The snapshot is semantically a copy of this image but may be implemented in a more efficient manner. Multiple snapshots taken at different times may share tiles that have not changed, and tiles that are currently static in this image's source do not need to be copied at all.
4.2.3.3 Disposing of a Snapshot Image
When aSnapshot
is no longer needed, itsdispose()
method may be called. Thedispose()
method will be called automatically when theSnapshot
is finalized by the garbage collector. Thedispose()
method attempts to push the contents of its tile cache back to the previousSnapshot
in the linked list. If that image possesses a version of the same tile, the tile is not pushed back and may be discarded.Disposing of the
Snapshot
allows tile data held by the Snapshot that is not needed by any otherSnapshot
to be disposed of as well.
API:javax.media.jai.PlanarImage
- void dispose()
- provides a hint that an image will no longer be accessed from a reference in user space. The results are equivalent to those that occur when the program loses its last reference to this image, the garbage collector discovers this, and finalize is called. This can be used as a hint in situations where waiting for garbage collection would be overly conservative.
4.2.4 Remote Image
ARemoteImage
is a sub-class ofPlanarImage
which represents an image on a remote server. ARemoteImage
may be constructed from aRenderedImage
or from an imaging chain in either the rendered or renderable modes. For more information, see Chapter 12, "Client-Server Imaging."
4.2.5 Collection Image
TheCollectionImage
class is an abstract superclass for classes representing groups of images. Examples of groups of images include pyramids (ImagePyramid
), time sequences (ImageSequence
), and planar slices stacked to form a volume (ImageStack
).
API:javax.media.jai.CollectionImage
- CollectionImage()
- the default constructor.
- CollectionImage(java.util.Collection images)
- constructs a
CollectionImage
object from a Vector ofImageJAI
objects.
Parameters: images
A Vector of ImageJAI
objects.
4.2.6 Image Sequence
TheImageSequence
class represents a sequence of images with associated timestamps and a camera position. It can be used to represent video or time-lapse photography.The images are of the type
ImageJAI
. The timestamps are of the typelong
. The camera positions are of the typePoint
. The tuple (image, time stamp, camera position) is represented by classSequentialImage
.
API:javax.media.jai.ImageSequence
- ImageSequence(Collection images)
- constructs a class that represents a sequence of images from a collection of
SequentialImage
.4.2.7 Image Stack
TheImageStack
class represents a stack of images, each with a defined spatial orientation in a common coordinate system. This class can be used to represent CT scans or seismic volumes.The images are of the type
javax.media.jai.PlanarImage
; the coordinates are of the typejavax.media.jai.Coordinate
. The tuple (image, coordinate) is represented by classjavax.media.jai.CoordinateImage
.
API:javax.media.jai.ImageStack
- ImageStack(Collection images)
- constructs an
ImageStack
object from a collection ofCoordinateImage
.
- ImageJAI getImage(Coordinate coordinate)
- returns the image associated with the specified coordinate.
- Coordinate getCoordinate(ImageJAI image)
- returns the coordinate associated with the specified image.
4.2.8 Image MIP Map
An image MIP map is a stack of images with a fixed operational relationship between adjacent slices. Given the highest-resolution slice, the others may be derived in turn by performing a particular operation. Data may be extracted slice by slice or by special iterators.A MIP map image (MIP stands for the Latin multim im parvo, meaning "many things in a small space") is usually associated with texture mapping. In texture mapping, the MIP map image contains different-sized versions of the same image in one location. To use mipmapping for texture mapping, you provide all sizes of the image in powers of 2 from the largest image to a 1 x 1 map.
The
ImageMIPMap
class takes the original source image at the highest resolution level, considered to be level 0, and a RenderedOp chain that defines how the image at the next lower resolution level is derived from the current resolution level.The RenderedOp chain may have multiple operations, but the first operation in the chain must take only one source image, which is the image at the current resolution level.
There are three
ImageMIPMap
constructors:
- ImageMIPMap(RenderedImage image, AffineTransform transform, Interpolation interpolation)
- This constructor assumes that the operation used to derive the next lower resolution is a standard affine operation.
Parameters: image
The image at the highest resolution level.
transform
The affine transform matrix used by "affine" operation.
interpolation
The interpolation method used by "affine" operation.
- Any number of versions of the original image may be derived by an affine transform representing the geometric relationship between levels of the MIP map. The affine transform may include translation, scaling, and rotation (see "Affine Transformation" on page 262).
- ImageMIPMap(RenderedImage image, RenderedOp downSampler)
- This constructor specifies the
downSampler
, which points to the RenderedOp chain used to derive the next lower resolution level.
Parameters: image
The image at the highest resolution level.
downsampler
The RenderedOp chain used to derive the next lower resolution level. The first operation of this chain must take one source, but must not have a source specified.
- mageMIPMap(RenderedOp downSampler)
The
- This constructor specifies only the
downSampler
.
downSampler
is a chain of operations used to derive the image at the next lower resolution level from the image at the current resolution level. That is, given an image at resolution level i, thedownSampler
is used to obtain the image at resolution level i + 1. The chain may contain one or more operation nodes; however, each node must be aRenderedOp
.The
downsampler
parameter points to the last node in the chain. The very first node in the chain must be aRenderedOp
that takes oneRenderedImage
as its source. All other nodes may have multiple sources. When traversing back up the chain, if a node has more than one source, the first source,source0
, is used to move up the chain. This parameter is saved by reference.Listing 4-3 shows a complete code example of the use of
ImageMIPMap
.
Listing 4-3 Example use of ImageMIPMap (Sheet 1 of 3)
import java.awt.geom.AffineTransform; import java.awt.image.RenderedImage; import java.awt.image.renderable.ParameterBlock; import javax.media.jai.JAI; import javax.media.jai.Interpolation; import javax.media.jai.InterpolationNearest; import javax.media.jai.ImageMIPMap; import javax.media.jai.PlanarImage; import javax.media.jai.RenderedOp; import com.sun.media.jai.codec.FileSeekableStream; public class ImageMIPMapTest extends Test { protected static String file = "/import/jai/JAI_RP/src/share/sample/images/pond.jpg"; protected Interpolation interp = new InterpolationNearest(); protected ImageMIPMap MIPMap; protected RenderedOp image; protected RenderedOp downSampler; private void test1() { AffineTransform at = new AffineTransform(0.8, 0.0, 0.0, 0.8, 0.0, 0.0); InterpolationNearest interp = new InterpolationNearest(); MIPMap = new ImageMIPMap(image, at, interp); display(MIPMap.getDownImage()); display(MIPMap.getImage(4)); display(MIPMap.getImage(1)); } public void test2() { downSampler = createScaleOp(image, 0.9F); downSampler.removeSources(); downSampler = createScaleOp(downSampler, 0.9F); MIPMap = new ImageMIPMap(image, downSampler); display(MIPMap.getImage(0)); display(MIPMap.getImage(5)); display(MIPMap.getImage(2)); } public void test3() { downSampler = createScaleOp(image, 0.9F); downSampler = createScaleOp(downSampler, 0.9F); MIPMap = new ImageMIPMap(downSampler); display(MIPMap.getImage(5)); System.out.println(MIPMap.getCurrentLevel()); display(MIPMap.getCurrentImage()); System.out.println(MIPMap.getCurrentLevel()); display(MIPMap.getImage(1)); System.out.println(MIPMap.getCurrentLevel()); } protected RenderedOp createScaleOp(RenderedImage src, float factor) { ParameterBlock pb = new ParameterBlock(); pb.addSource(src); pb.add(factor); pb.add(factor); pb.add(1.0F); pb.add(1.0F); pb.add(interp); return JAI.create("scale", pb); } public ImageMIPMapTest(String name) { super(name); try { FileSeekableStream stream = new FileSeekableStream(file); image = JAI.create("stream", stream); } catch (Exception e) { System.exit(0); } } public static void main(String args[]) { ImageMIPMapTest test = new ImageMIPMapTest("ImageMIPMap"); // test.test1(); // test.test2(); test.test3(); } }
API:javax.media.jai.ImageMIPMap
- int getCurrentLevel()
- returns the current resolution level. The highest resolution level is defined as level 0.
- RenderedImage getCurrentImage()
- returns the image at the current resolution level.
- RenderedImage getImage(int level)
- returns the image at the specified resolution level. The requested level must be greater than or equal to the current resolution level or
null
will be returned.
- RenderedImage getDownImage()
- returns the image at the next lower resolution level, obtained by applying the
downSampler
on the image at the current resolution level.4.2.9 Image Pyramid
TheImagePyramid
class implements a pyramid operation on aRenderedImage
. Supposing that we have aRenderedImage
of 1024 x 1024, we could generate ten additional images by successively averaging 2 x 2 pixel blocks, each time discarding every other row and column of pixels. We would be left with images of 512 x 512, 256 x 256, and so on down to 1 x 1.In practice, the lower-resolution images may be derived by performing any chain of operations to repeatedly down sample the highest-resolution image slice. Similarly, once a lower resolution image slice is obtained, the higher resolution image slices may be derived by performing another chain of operations to repeatedly up sample the lower resolution image slice. Also, a third operation chain may be used to find the difference between the original slice of image and the resulting slice obtained by first down sampling then up sampling the original slice.
This brings us to the discussion of the parameters required of this class:
Starting with the image at the highest resolution level, to find an image at a lower resolution level we use the
downSampler
. But, at the same time we also use theupSampler
to retrieve the image at the higher resolution level, then use thedifferencer
to find the difference image between the original image and the derived image from theupSampler
. We save this difference image for later use.
To find an image at a higher resolution, we use the
upSampler
, then combine the earlier saved difference image with the resulting image using thecombiner
to get the final higher resolution level.For example:
- We have an image at level n
n + 1 = downSampler(n)
diff n = upSampler(n + 1)
diff n = differencer(n, n') - This diff n is saved for each level
Later we want to get n from n + 1
n' = upSampler(n + 1)
n = combiner(n', diff n)4.2.9.1 The Down Sampler
ThedownSampler
is a chain of operations used to derive the image at the next lower resolution level from the image at the current resolution level. That is, given an image at resolution level i, thedownSampler
is used to obtain the image at resolution level i + 1. The chain may contain one or more operation nodes; however, each node must be aRenderedOp
. The parameter points to the last node in the chain. The very first node in the chain must be aRenderedOp
that takes oneRenderedImage
as its source. All other nodes may have multiple sources. When traversing back up the chain, if a node has more than one source, the first source,source0
, is used to move up the chain. This parameter is saved by reference.The
getDownImage
method returns the image at the next lower resolution level, obtained by applying thedownSampler
on the image at the current resolution level.
4.2.9.2 The Up Sampler
TheupSampler
is a chain of operations used to derive the image at the next higher resolution level from the image at the current resolution level. That is, given an image at resolution level i, theupSampler
is used to obtain the image at resolution level i - 1. The requirement for this parameter is similar to the requirement for thedownSampler
parameter.The
getUpImage
method returns the image at the previous higher resolution level. If the current image is already at level 0, the current image is returned without further up sampling. The down-sampled image is obtained by first up sampling the current image, then combining the resulting image with the previously-saved different image using thecombiner
op chain (see Section 4.2.9.4, "The Combiner").
4.2.9.3 The Differencer
Thedifferencer
is a chain of operations used to find the difference between an image at a particular resolution level and the image obtained by first down sampling that image then up sampling the result image of the down sampling operations. The chain may contain one or more operation nodes; however, each node must be aRenderedOp
. The parameter points to the last node in the chain. The very first node in the chain must be aRenderedOp
that takes twoRenderedImage
s as its sources. When traversing back up the chain, if a node has more than one source, the first source,source0
, is used to move up the chain. This parameter is saved by reference.The
getDiffImage
method returns the difference image between the current image and the image obtained by first down sampling the current image then up sampling the resulting image of down sampling. This is done using thedifferencer
op chain. The current level and current image are not changed.
4.2.9.4 The Combiner
Thecombiner
is a chain of operations used to combine the resulting image of the up sampling operations and the different image saved to retrieve an image at a higher resolution level. The requirement for this parameter is similar to the requirement for thedifferencer
parameter.
4.2.9.5 Example
Listing 4-4 shows a complete code example of the use ofImagePyramid
.
Listing 4-4 Example use of ImagePyramid (Sheet 1 of 4)
import java.awt.image.RenderedImage; import java.awt.image.renderable.ParameterBlock; import javax.media.jai.JAI; import javax.media.jai.Interpolation; import javax.media.jai.ImageMIPMap; import javax.media.jai.ImagePyramid; import javax.media.jai.PlanarImage; import javax.media.jai.RenderedOp; import com.sun.media.jai.codec.FileSeekableStream; public class ImagePyramidTest extends ImageMIPMapTest { protected RenderedOp upSampler; protected RenderedOp differencer; protected RenderedOp combiner; protected ImagePyramid pyramid; private void test1() { } public void test2() { downSampler = createScaleOp(image, 0.9F); downSampler.removeSources(); downSampler = createScaleOp(downSampler, 0.9F); upSampler = createScaleOp(image, 1.2F); upSampler.removeSources(); upSampler = createScaleOp(upSampler, 1.2F); differencer = createSubtractOp(image, image); differencer.removeSources(); combiner = createAddOp(image, image); combiner.removeSources(); pyramid = new ImagePyramid(image, downSampler, upSampler, differencer, combiner); display(pyramid.getImage(0)); display(pyramid.getImage(4)); display(pyramid.getImage(1)); display(pyramid.getImage(6)); } public void test3() { downSampler = createScaleOp(image, 0.9F); downSampler = createScaleOp(downSampler, 0.9F); upSampler = createScaleOp(image, 1.2F); upSampler.removeSources(); differencer = createSubtractOp(image, image); differencer.removeSources(); combiner = createAddOp(image, image); combiner.removeSources(); pyramid = new ImagePyramid(downSampler, upSampler, differencer, combiner); // display(pyramid.getCurrentImage()); display(pyramid.getDownImage()); // display(pyramid.getDownImage()); display(pyramid.getUpImage()); } public void test4() { downSampler = createScaleOp(image, 0.5F); upSampler = createScaleOp(image, 2.0F); upSampler.removeSources(); differencer = createSubtractOp(image, image); differencer.removeSources(); combiner = createAddOp(image, image); combiner.removeSources(); pyramid = new ImagePyramid(downSampler, upSampler, differencer, combiner); pyramid.getDownImage(); display(pyramid.getCurrentImage()); display(pyramid.getDiffImage()); display(pyramid.getCurrentImage()); } protected RenderedOp createSubtractOp(RenderedImage src1, RenderedImage src2) { ParameterBlock pb = new ParameterBlock(); pb.addSource(src1); pb.addSource(src2); return JAI.create("subtract", pb); } protected RenderedOp createAddOp(RenderedImage src1, RenderedImage src2) { ParameterBlock pb = new ParameterBlock(); pb.addSource(src1); pb.addSource(src2); return JAI.create("add", pb); } public ImagePyramidTest(String name) { super(name); } public static void main(String args[]) { ImagePyramidTest test = new ImagePyramidTest("ImagePyramid"); // test.test2(); test.test3(); // test.test4(); } }
API:javax.media.jai.ImagePyramid
- ImagePyramid(RenderedImage image, RenderedOp downsampler, RenderedOp upSampler, RenderedOp differencer, RenderedOp combiner)
- constructs an
ImagePyramid
object. The parameters point to the last operation in each chain. The first operation in each chain must not have any source images specified; that is, its number of sources must be 0.
Parameters: image
The image with the highest resolution.
downsampler
The operation chain used to derive the lower-resolution images.
upsampler
The operation chain used to derive the higher-resolution images.
differencer
The operation chain used to differ two images.
combiner
The operation chain used to combine two images.
- ImagePyramid(RenderedOp downSampler, RenderedOp upSampler, RenderedOp differencer, RenderedOp combiner)
- constructs an
ImagePyramid
object. TheRenderedOp
parameters point to the last operation node in each chain. The first operation in thedownSampler
chain must have the image with the highest resolution as its source. The first operation in all other chains must not have any source images specified; that is, its number of sources must be 0. All input parameters are saved by reference.
- public RenderedImage getImage(int level)
- returns the image at the specified resolution level. The requested level must be greater than or equal to 0 or null will be returned. The image is obtained by either down sampling or up sampling the current image.
- public RenderedImage getDownImage()
- returns the image at the next lower resolution level, obtained by applying the
downSampler
on the image at the current resolution level.
- public RenderedImage getUpImage()
- returns the image at the previous higher resolution level. If the current image is already at level 0, the current image is returned without further up sampling. The image is obtained by first up sampling the current image, then combining the result image with the previously saved different image using the
combiner
op chain.
- public RenderedImage getDiffImage()
- returns the difference image between the current image and the image obtained by first down sampling the current image then up sampling the result image of down sampling. This is done using the
differencer
op chain. The current level and current image will not be changed.4.2.10 Multi-resolution Renderable Images
TheMultiResolutionRenderableImage
class produces renderings based on a set of suppliedRenderedImages
at various resolutions.
API:javax.media.jai.MultiResolutionRenderableImage
- public MultiResolutionRenderableImage(Vector renderedSources, float minX, float minY, float height)
- constructs a
MultiResolutionRenderableImage
with given dimensions from aVector
of progressively lower resolution versions of a RenderedImage.
Parameters: rendered-Sources
A Vector
ofRenderedImages
.
minX
The minimum x coordinate of the Renderable, as a float.
minY
The minimum y coordinate of the Renderable, as a float.
height
The height of the Renderable, as a float.
- RenderedImage createScaledRendering(int width, int height, RenderingHints hints)
- returns a rendering with a given width, height, and rendering hints. If a JAI rendering hint named
JAI.KEY_INTERPOLATION
is provided, its correspondingInterpolation
object is used as an argument to the JAI operator used to scale the image. If no such hint is present, an instance ofInterpolationNearest
is used.
Parameters: width
The width of the rendering in pixels.
height
The height of the rendering in pixels.
hints
A Hashtable
of rendering hints.
- RenderedImage createDefaultRendering()
- returns a 100-pixel high rendering with no rendering hints.
- RenderedImage createRendering(RenderContext renderContext)
- returns a rendering based on a
RenderContext
. If a JAI rendering hint namedJAI.KEY_INTERPOLATION
is provided, its correspondingInterpolation
object is used as an argument to the JAI operator used to scale the image. If no such hint is present, an instance ofInterpolationNearest
is used.
Parameters: render-Context
A RenderContext
describing the transform and rendering hints.
- Object getProperty(String name)
- gets a property from the property set of this image. If the property name is not recognized,
java.awt.Image.UndefinedProperty
will be returned.
Parameters: name
The name of the property to get, as a String.
- String[] getPropertyNames()
- returns a list of the properties recognized by this image.
- float getWidth()
- returns the floating-point width of the
RenderableImage
.
- float getHeight()
- returns the floating-point height of the
RenderableImage
.
- float getMinX()
- returns the floating-point minimum x coordinate of the
RenderableImage
.
- float getMaxX()
- returns the floating-point maximum x coordinate of the
RenderableImage
.
- float getMinY()
- returns the floating-point minimum y coordinate of the
RenderableImage
.
- float getMaxY()
- returns the floating-point maximum y coordinate of the
RenderableImage
.4.3 Streams
The Java Advanced Imaging API extends the Java family of stream types with the addition of seven "seekable" stream classes, as shown in Figure 4-4. Table 4-3 briefly describes each of the new classes.The new seekable classes are used to cache the image data being read so that methods can be used to seek backwards and forwards through the data without having to re-read the data. This is especially important for image data types that are segmented or that cannot be easily re-read to locate important information.
To properly read some image data files requires the ability to seek forward and backward through the data so as to read information that describes the image. The best way of making the data seekable is through a cache, a temporary file stored on a local disk or in main memory. The preferred method of storage for the cached data is local disk, but that it not always possible. For security concerns or for diskless systems, the creation of a disk file cache may not always be permitted. When a file cache is not permissible, an in-memory cache may be used.
The
SeekableStream
class allows seeking within the input, similarly to theRandomAccessFile
class. Additionally, theDataInput
interface is supported and extended to include support for little-endian representations of fundamental data types.The
SeekableStream
class adds severalread
methods to the already extensive java.io.DataInput
class, including methods for reading data in little-endian (LE) order. In Java, all values are written in big-endian fashion. However, JAI needs methods for reading data that is not produced by Java; data that is produced on other platforms that produce data in the little-endian fashion. Table 4-4 is a complete list of the methods to read data:
In addition to the familiar methods from
InputStream
, the methodsgetFilePointer
() andseek()
, are defined as in theRandomAccessFile
class. ThecanSeekBackwards()
method returnstrue
if it is permissible to seek to a position earlier in the stream than the current value ofgetFilePointer()

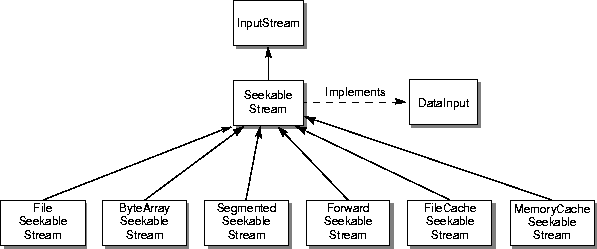

. Some subclasses ofSeekableStream
guarantee the ability to seek backwards while others may not offer this feature in the interest of efficiency for those users who do not require backward seeking.Several concrete subclasses of
SeekableStream
are supplied in thecom.sun.media.jai.codec
package. Three classes are provided for the purpose of adapting a standardInputStream
to theSeekableStream
interface. TheForwardSeekableStream
class does not allow seeking backwards, but is inexpensive to use. TheFileCacheSeekableStream
class maintains a copy of all of the data read from the input in a temporary file; this file will be discarded automatically when theFileSeekableStream
is finalized, or when the JVM exits normally.The
FileCacheSeekableStream
class is intended to be reasonably efficient apart from the unavoidable use of disk space. In circumstances where the creation of a temporary file is not possible, theMemoryCacheSeekableStream
class may be used. TheMemoryCacheSeekableStream
class creates a potentially large in-memory buffer to store the stream data and so should be avoided when possible. TheFileSeekableStream
class wraps aFile
orRandomAccessFile
. It forwards requests to the real underlying file.FileSeekableStream
performs a limited amount of caching to avoid excessive I/O costs.A convenience method,
wrapInputStream
is provided to construct a suitableSeekableStream
instance whose data is supplied by a givenInputStream
. The caller, by means of thecanSeekBackwards
parameter, determines whether support for seeking backwards is required.
4.4 Reading Image Files
The JAI codec architecture consists of encoders and decoders capable of writing and reading several different raster image file formats. This chapter describes reading image files. For information on writing image files, see Chapter 13, "Writing Image Files."There are many raster image file formats, most of which have been created to support both image storage and interchange. Some formats have become widely used and are considered de facto standards. Other formats, although very important to individual software vendors, are less widely used.
JAI directly supports several of the most common image file formats, listed in Table 4-5. If your favorite file format is not listed in Table 4-5, you may either be able to create your own file codec (see Chapter 14, "Extending the API") or use one obtained from a third party developer.
An image file usually has at least two parts: a file header and the image data. The header contains fields of pertinent information regarding the following image data. At the very least, the header must provide all the information necessary to reconstruct the original image from the stored image data. The image data itself may or may not be compressed.
The main class for image decoders and encoders is the
ImageCodec
class. Subclasses ofImageCodec
are able to perform recognition of a particular file format either by inspection of a fixed-length file header or by arbitrary access to the source data stream. EachImageCodec
subclass implements one of two image file recognition methods. The codec first calls thegetNumHeaderBytes()
method, which either returns 0 if arbitrary access to the stream is required, or returns the number of header bytes required to recognize the format. Depending on the outcome of thegetNumHeaderBytes()
method, the codec either reads the stream or the header.Once the codec has determined the image format, either by reading the stream or the header, it returns the name of the codec associated with the detected image format. If no codec is registered with the name,
null
is returned. The name of the codec defines the subclass that is called, which decodes the image.For most image types, JAI offers the option of reading an image data file as a
java.io.File
object or as one of the subclasses ofjava.io.InputStream
.JAI offers several file operators for reading image data files, as listed in Table 4-6.
4.4.1 Standard File Readers for Most Data Types
You can read a file type directly with one of the available operation descriptors (such as thetiff
operation to read TIFF files), by the stream file reader to readInputStream
files, or theFileLoad
operator to read from a disk file. TheStream
andFileLoad
operations are generic file readers in the sense that the image file type does not have to be known ahead of time. These file read operations automatically detect the file type when invoked and use the appropriate file reader. This means that the programmer can use the same graph to read any of the "recognized" file types.The
Stream
andFileLoad
operations use a set ofFormatRecognizer
classes to query the file types when the image data is called for. AFormatRecognizer
may be provided for any format that may be definitively recognized by examining the initial portion of the data stream. A newFormatRecognizer
may be added to theOperationRegistry
by means of theregisterFormatRecognizer
method (see Section 14.5, "Writing New Image Decoders and Encoders").
4.4.1.1 The Stream Operation
TheStream
operation reads an image from aSeekableStream
. If the file is one of the recognized "types," the file will be read. Thefile
operation will query the set of registeredFormatRecognizer
s. If a call to theisFormatRecognized
method returns true, the associated operation name is retrieved by calling thegetOperationName
method and the named operation is instantiated.If the operation fails to read the file, no other operation will be invoked since the input will have been consumed.
The
Stream
operation takes a single parameter:
Parameter Type Description stream SeekableStream The SeekableStream to read from.
Listing 4-5 shows a code sample for a
Stream
operation.
Listing 4-5 Example Stream Operation
// Load the source image from a Stream. RenderedImage im = JAI.create("stream", stream);
4.4.1.2 The FileLoad Operation
The FileLoad operation reads an image from a file. Like theStream
operation, if the file is one of the recognized "types," the file will be read. If the operation fails to read the file, no other operation will be invoked since the input will have been consumed.The
FileLoad
operation takes a single parameter:
Parameter Type Description filename String The path of the file to read from.
Listing 4-6 shows a code sample for a
FileLoad
operation.
Listing 4-6 Example FileLoad Operation
// Load the source image from a file. RenderedImage src = (RenderedImage)JAI.create("fileload", fileName);
4.4.2 Reading TIFF Images
The Tag Image File Format (TIFF) is one of the most common digital image file formats. This file format was specifically designed for large arrays of raster image data originating from many sources, including scanners and video frame grabbers. TIFF was also designed to be portable across several different computer platforms, including UNIX, Windows, and Macintosh. The TIFF file format is highly flexible, which also makes it fairly complex.The
TIFF
operation reads TIFF data from a TIFFSeekableStream
. TheTIFF
operation takes one parameter:
Parameter Type Description file SeekableStream The SeekableStream to read from.
The
TIFF
operation reads the following TIFF image types:
- Bilevel or grayscale, white is zero
- Bilevel or grayscale, black is zero
- Palette-color images
- RGB full color (three samples per pixel)
- RGB full color (four samples per pixel) (Opacity + RGB)
- RGB full color with alpha data
- RGB full color with alpha data (with pre-multiplied color)
- RGB full color with extra components
The
- Transparency mask
TIFF
operation supports the following compression types:
- None (no compression)
- PackBits compression
For an example of reading a TIFF file, see Listing A-1 on page 397.
- Modified Huffman compression (CCITT Group3 1-dimensional facsimile)
4.4.2.1 Palette Color Images
For TIFF Palette color images, thecolorMap
always has entries of short data type, the color black being represented by 0,0,0 and white by 65536,65536,65536. To display these images, the default behavior is to dither the short values down to 8 bits. The dithering is done by calling thedecode16BitsTo8Bit
method for each short value that needs to be dithered. The method has the following implementation:byte b; short s; s = s & 0xffff; b = (byte)((s >> 8) & 0xff);If a different algorithm is to be used for the dithering, theTIFFDecodeParam
class should be subclassed and an appropriate implementation should be provided for thedecode16BitsTo8Bits
method in the subclass.If it is desired that the Palette be decoded such that the output image is of short data type and no dithering is performed, use the
setDecodePaletteAsShorts
method.
API:com.sun.media.jai.codec.TIFFDecodeParam
- void setDecodePaletteAsShorts(boolean decodePaletteAsShorts)
- if set, the entries in the palette will be decoded as shorts and no short-to-byte lookup will be applied to them.
- boolean getDecodePaletteAsShorts()
- returns
true
if palette entries will be decoded as shorts, resulting in a output image with short datatype.
- byte decode16BitsTo8Bits(int s)
- returns an unsigned 8-bit value computed by dithering the unsigned 16-bit value. Note that the TIFF specified short datatype is an unsigned value, while Java's
short
datatype is a signed value. Therefore the Javashort
datatype cannot be used to store the TIFF specified short value. A Javaint
is used as input instead to this method. The method deals correctly only with 16-bit unsigned values.4.4.2.2 Multiple Images per TIFF File
A TIFF file may contain more than one Image File Directory (IFD). Each IFD defines a subfile, which may be used to describe related images. To determine the number of images in a TIFF file, use theTIFFDirectory.getNumDirectories()
method.Calling the
setIFD()
method on theTIFFDecodeParam
object allows a subimage to be selected from a multi-page TIFF file by its IFD index.
API:com.sun.media.jai.codec.TIFFDirectory
- static int getNumDirectories(SeekableStream stream)
- returns the number of image directories (subimages) stored in a given TIFF file, represented by a
SeekableStream
.
API:com.sun.media.jai.codec.TIFFDecodeParam
- void setIFD(int ifd)
- sets the index of the image to be decoded.
- int getIFD()
- returns the index of the image to be decoded.
4.4.2.3 Image File Directory (IFD)
TheTIFFDirectory
class represents an Image File Directory (IFD) from a TIFF 6.0 stream. The IFD consists of a count of the number of directories (number of fields), followed by a sequence of field entries identified by a tag that identifies the field. A field is identified as a sequence of values of identical data type. The TIFF 6.0 specification defines 12 data types, which are mapped internally into the Java data types, as described in Table 4-7.
The
TIFFField
class contains several methods to query the set of tags and to obtain the raw field array. In addition, convenience methods are provided for acquiring the values of tags that contain a single value that fits into abyte
,int
,long
,float
, ordouble
.The
getTag
method returns the tag number. The tag number identifies the field. The tag number is anint
value between 0 and 65,535. ThegetType
method returns the type of data stored in the IFD. For a TIFF 6.0 file, the value will one of those defined in Table 4-7. ThegetCount
method returns the number of elements in the IFD. The count (also known as length in earlier TIFF specifications) is the number of values.
API:com.sun.media.jai.codec.TIFFField
- int getTag()
- returns the tag number, between 0 and 65535.
- int getType()
- returns the type of the data stored in the IFD.
- int getCount()
- returns the number of elements in the IFD.
4.4.2.4 Public and Private IFDs
Every TIFF file is made up of one or more public IFDs that are joined in a linked list, rooted in the file header. A file may also contain so-called private IFDs that are referenced from tag data and do not appear in the main list.The
TIFFDecodeParam
class allows the index of the TIFF directory (IFD) to be set. In a multipage TIFF file, index 0 corresponds to the first image, index 1 to the second, and so on. The index defaults to 0.
API:com.sun.media.jai.codec.TIFFDirectory
- TIFFDirectory(SeekableStream stream, int directory)
- constructs a
TIFFDirectory
from aSeekableStream
. The directory parameter specifies which directory to read from the linked list present in the stream; directory 0 is normally read but it is possible to store multiple images in a single TIFF file by maintaining multiple directories.
Parameters: stream
A SeekableStream
.
directory
The index of the directory to read.
- TIFFDirectory(SeekableStream stream, long ifd_offset)
- constructs a TIFFDirectory by reading a
SeekableStream
. Theifd_offset
parameter specifies the stream offset from which to begin reading; this mechanism is sometimes used to store private IFDs within a TIFF file that are not part of the normal sequence of IFDs.
- int getNumEntries()
- returns the number of directory entries.
- TIFFField getField(int tag)
- returns the value of a given tag as a TIFFField, or null if the tag is not present.
- boolean isTagPresent(int tag)
- returns true if a tag appears in the directory.
- int[] getTags()
- returns an ordered array of ints indicating the tag values.
- TIFFField[] getFields()
- returns an array of TIFFFields containing all the fields in this directory.
- byte getFieldAsByte(int tag, int index)
- returns the value of a particular index of a given tag as a byte. The caller is responsible for ensuring that the tag is present and has type
TIFFField.TIFF_SBYTE
,TIFF_BYTE
, orTIFF_UNDEFINED
.
- byte getFieldAsByte(int tag)
- returns the value of index 0 of a given tag as a byte.
- long getFieldAsLong(int tag, int index)
- returns the value of a particular index of a given tag as a long.
- long getFieldAsLong(int tag)
- returns the value of index 0 of a given tag as a long.
- float getFieldAsFloat(int tag, int index)
- returns the value of a particular index of a given tag as a float.
- float getFieldAsFloat(int tag)
- returns the value of a index 0 of a given tag as a float.
- double getFieldAsDouble(int tag, int index)
- returns the value of a particular index of a given tag as a double.
- double getFieldAsDouble(int tag)
- returns the value of index 0 of a given tag as a double.
4.4.3 Reading FlashPix Images
FlashPix is a multi-resolution, tiled file format that allows images to be stored at different resolutions for different purposes, such as editing or printing. Each resolution is divided into 64 x 64 blocks, or tiles. Within a tile, pixels can be either uncompressed, JPEG compressed, or single-color compressed.The
FPX
operation reads an image from a FlashPix stream. TheFPX
operation takes one parameter:
Parameter Type Description stream SeekableStream The SeekableStream to read from.
Listing 4-7 shows a code sample for a
FPX
operation.
Listing 4-7 Example of Reading a FlashPix Image
// Specify the filename. File file = new File(filename); // Specify the resolution of the file. ImageDecodeParam param = new FPXDecodeParam(resolution); // Create the FPX operation to read the file. ImageDecoder decoder = ImageCodec.createImageDecoder("fpx", file, param); RenderedImage im = decoder.decodeAsRenderedImage(); ScrollingImagePanel p = new ScrollingImagePanel(im, Math.min(im.getWidth(), 800) + 20, Math.min(im.getHeight(), 800) + 20);
4.4.4 Reading JPEG Images
The JPEG standard was developed by a working group, known as the Joint Photographic Experts Group (JPEG). The JPEG image data compression standard handles grayscale and color images of varying resolution and size.The
JPEG
operation takes a single parameter:
Parameter Type Description file SeekableStream The SeekableStream to read from.
4.4.5 Reading GIF Images
Compuserve's Graphics Interchange Format (GIF) is limited to 256 colors, but supported by virtually every platform that supports graphics.The
GIF
operation reads an image from a GIF stream. TheGIF
operation takes a single parameter:
Parameter Type Description stream SeekableStream The SeekableStream to read from.
4.4.6 Reading BMP Images
The BMP (Microsoft Windows bitmap image file) file format is a commonly-used file format on IBM PC-compatible computers. BMP files can also refer to the OS/2 bitmap format, which is a strict superset of the Windows format. The OS/2 2.0 format allows for multiple bitmaps in the same file, for the CCITT Group3 1bpp encoding, and also a RLE24 encoding.The
BMP
operation reads BMP data from an input stream. TheBMP
operation currently reads Version2, Version3, and some of the Version 4 images, as defined in the Microsoft Windows BMP file format.Version 4 of the BMP format allows for the specification of alpha values, gamma values and CIE colorspaces. These are not currently handled, but the relevant properties are emitted, if they are available from the BMP image file.
The
BMP
operation takes a single parameter:
Parameter Type Description stream SeekableStream The SeekableStream to read from.
Listing 4-8 shows a code sample for a
GIF
operation.
Listing 4-8 Example of Reading a BMP Image
// Wrap the InputStream in a SeekableStream. InputStream is = new FileInputStream(filename); SeekableStream s = SeekableStream.wrapInputStream(is, false); // Create the ParameterBlock and add the SeekableStream to it. ParameterBlock pb = new ParameterBlock(); pb.add(s); // Perform the BMP operation op = JAI.create("BMP", pb);
API:com.sun.media.jai.codec.SeekableStream
- static SeekableStream wrapInputStream(java.io.InputStream is, boolean canSeekBackwards)
- returns a SeekableStream that will read from a given InputStream, optionally including support for seeking backwards.
4.4.7 Reading PNG Images
The PNG (Portable Network Graphics) is an extensible file format for the lossless, portable, compressed storage of raster images. PNG was developed as a patent-free alternative to GIF and can also replace many common uses of TIFF. Indexed-color, grayscale, and truecolor images are supported, plus an optional alpha channel. Sample depths range from 1 to 16 bits.For more information on PNG images, see the specification at the following URL:
http://www.cdrom.com/pub/png/specThePNG
operation reads a standard PNG input stream. ThePNG
operation implements the entire PNG specification, but only provides access to the final, high-resolution version of interlaced images. The output image will always include aComponentSampleModel
and either a byte or shortDataBuffer
.Pixels with a bit depth of less than eight are scaled up to fit into eight bits. One-bit pixel values are output as 0 and 255. Pixels with a bit depth of two or four are left shifted to fill eight bits. Palette color images are expanded into three-banded RGB. PNG images stored with a bit depth of 16 will be truncated to 8 bits of output unless the
KEY_PNG_EMIT_16BITS
hint is set toBoolean.TRUE
. Similarly, the output image will not have an alpha channel unless theKEY_PNG_EMIT_ALPHA
hint is set. See Section 4.4.7.3, "Rendering Hints."The
PNG
operation takes a single parameter:
Parameter Type Description stream SeekableStream The SeekableStream to read from.
Listing 4-9 shows a code sample for a
PNG
operation.
Listing 4-9 Example of Reading a PNG Image
// Create the ParameterBlock. InputStream image = new FileInputStream(filename); ParameterBlock pb = new ParameterBlock(); pb.add(image); // Create the PNG operation. op = JAI.create("PNG", pb);
Several aspects of the PNG image decoding may be controlled. By default, decoding produces output images with the following properties:
- Images with a bit depth of eight or less use a
DataBufferByte
to hold the pixel data. 16-bit images use aDataBufferUShort
.
- Palette color images and non-transparent grayscale images with bit depths of one, two, or four will have a
MultiPixelPackedSampleModel
and anIndexColorModel
. For palette color images, theColorModel
palette contains the red, green, blue, and optionally alpha palette information. For grayscale images, the palette is used to expand the pixel data to cover the range 0 to 255. The pixels are stored packed eight, four, or two to the byte.Methods in the
- All other images are stored using a
PixelInterleavedSampleModel
with each band of a pixel occupying its ownbyte
orshort
within theDataBuffer
. AComponentColorModel
is used, which simply extracts the red, green, blue, gray, and/or alpha information from separateDataBuffer
entries.PNGDecodeParam
class permit changes to five aspects of the decode process:
- The
setSuppressAlpha()
method prevents an alpha channel from appearing in the output.
- The
setExpandPalette()
method turns palette-color images into three- or four-banded full-color images.
- The
setOutput8BitGray()
method causes one-, two-, or four-bit grayscale images to be output in eight-bit form, using aComponentSampleModel
andComponentColorModel
.
- The
setOuputGamma()
method causes the output image to be gamma-corrected using a supplied output gamma value.
- The
setExpandGrayAlpha()
method causes two-banded gray/alpha (GA) images to be output as full-color (GGGA) images, which may simplify further processing and display.
API:com.sun.media.jai.codec.PNGDecodeParam
- public void setSuppressAlpha(boolean suppressAlpha)
- when set, suppresses the alpha (transparency) channel in the output image.
- public void setExpandPalette(boolean expandPalette)
- when set, causes palette color images (PNG color type 3) to be decoded into full-color (RGB) output images. The output image may have three or four bands, depending on the presence of transparency information. The default is to output palette images using a single band. The palette information is used to construct the output image's
ColorModel
.
- public void setOutput8BitGray(boolean output8BitGray)
- when set, causes grayscale images with a bit depth of less than eight (one, two, or four) to be output in eight-bit form. The output values will occupy the full eight-bit range. For example, gray values zero, one, two, and three of a two-bit image will be output as 0, 85, 170, and 255. The decoding of non-grayscale images and grayscale images with a bit depth of 8 or 16 are unaffected by this setting. The default is not to perform expansion. Grayscale images with a depth of one, two, or four bits will be represented using a
MultiPixelPackedSampleModel
and anIndexColorModel
.
- public void setOutputGamma(float outputGamma)
- sets the desired output gamma to a given value. In terms of the definitions in the PNG specification, the output gamma is equal to the viewing gamma divided by the display gamma. The output gamma must be positive. If the output gamma is set, the output image will be gamma-corrected using an overall exponent of output gamma/file gamma. Input files that do not contain gamma information are assumed to have a file gamma of 1.0. This parameter affects the decoding of all image types.
- public void setExpandGrayAlpha(boolean expandGrayAlpha)
- when set, causes images containing one band of gray and one band of alpha (GA) to be output in a four-banded format (GGGA). This produces output that may be simpler to process and display. This setting affects both images of color type 4 (explicit alpha) and images of color type 0 (grayscale) that contain transparency information.
4.4.7.1 Gamma Correction and Exponents
PNG images can contain a gamma correction value. The gamma value specifies the relationship between the image samples and the desired display output intensity as a power function:The
- sample = light_outgamma
getPerformGammaCorrection
method returnstrue
if gamma correction is to be performed on the image data. By default, gamma correction istrue
.If gamma correction is to be performed, the
getUserExponent
andgetDisplayExponent
methods are used in addition to the gamma value stored within the file (or the default value of 1/2.2 used if no value is found) to produce a single exponent using the following equation:The
setUserExponent
method is used to set theuser_exponent
value. If theuser_exponent
value is set, the output image pixels are placed through the following transformation: Input files that do not specify any gamma value are assumed to have a gamma of 1/2.2. Such images may be displayed on a CRT with an exponent of 2.2 using the default user exponent of 1.0.The user exponent may be used to change the effective gamma of a file. If a file has a stored gamma of X, but the decoder believes that the true file gamma is Y, setting a user exponent of Y/X will produce the same result as changing the file gamma.
API:com.sun.media.jai.codec.PNGDecodeParam
- boolean getPerformGammaCorrection()
- returns
true
if gamma correction is to be performed on the image data. The default istrue
.
- void setPerformGammaCorrection(boolean performGammaCorrection)
- turns gamma correction of the image data on or off.
- float getUserExponent()
- returns the current value of the user exponent parameter. By default, the user exponent is equal to 1.0F.
- void setUserExponent(float userExponent)
- sets the user exponent to a given value. The exponent must be positive.
- float getDisplayExponent()
- returns the current value of the display exponent parameter. By default, the display exponent is 2.2F.
- void setDisplayExponent(float displayExponent)
- Sets the display exponent to a given value. The exponent must be positive.
4.4.7.2 Expanding Grayscale Images to GGGA Format
Normally, thePNG
operation does not expand images that contain one channel of gray and one channel of alpha into a four-channel (GGGA) format. If this type of expansion is desired, use thesetExpandGrayAlpha
method. This setting affects both images of color type 4 (explicit alpha) and images of color type 0 (grayscale) that contain transparency information.
API:com.sun.media.jai.codec.PNGDecodeParam
- void setExpandGrayAlpha(boolean expandGrayAlpha)
- sets or unsets the expansion of two-channel (gray and alpha) PNG images to four-channel (GGGA) images.
4.4.7.3 Rendering Hints
The PNG rendering hints are:
To read the hints, use the
OperationDescriptorImpl.getHint
method.
API:
javax.media.jai.OperationDescriptorImpl
- Object getHint(RenderingHints.Key key, RenderingHints renderHints)
- queries the rendering hints for a particular hint key and copies it into the hints observed Hashtable if found. If the hint is not found, null is returned and the hints observed are left unchanged.
4.4.8 Reading PNM Images
ThePNM
operation reads a standard PNM file, including PBM, PGM, and PPM images of both ASCII and raw formats. The PBM (portable bitmap) format is a monochrome file format (single-banded), originally designed as a simple file format to make it easy to mail bitmaps between different types of machines. The PGM (portable graymap) format is a grayscale file format (single-banded). The PPM (portable pixmap) format is a color image file format (three-banded).PNM image files are identified by a magic number in the file header that identifies the file type variant, as follows:
The
PNM
operation reads the file header to determine the file type, then stores the image data into an appropriateSampleModel
. ThePNM
operation takes a single parameter:
Parameter Type Description stream SeekableStream The SeekableStream to read from.
Listing 4-10 shows a code sample for a
PNM
operation.
Listing 4-10 Example of Reading a PNM Image
// Create the ParameterBlock. InputStream image = new FileInputStream(filename); ParameterBlock pb = new ParameterBlock(); pb.add(image); // Create the PNM operation. op = JAI.create("PNM", pb);
4.4.9 Reading Standard AWT Images
TheAWTImage
operation allows standard Java AWT images to be directly imported into JAI, as a rendered image. By default, the width and height of the image are the same as the original AWT image. The sample model and color model are set according to the AWT image data. The layout of thePlanarImage
may be specified using theImageLayout
parameter at constructing time.The
AWTImage
operation takes one parameter.
Parameter Type Description awtImage Image The standard Java AWT image to be converted.
Listing 4-11 shows a code sample for an
AWTImage
operation.
Listing 4-11 Example of Reading an AWT Image
// Create the ParameterBlock. ParameterBlock pb = new ParameterBlock(); pb.add(image); // Create the AWTImage operation. PlanarImage im = (PlanarImage)JAI.create("awtImage", pb);
API:javax.media.jai.PlanarImage
- void setImageParameters(ImageLayout layout, RenderedImage im)
- Sets the image bounds, tile grid layout,
SampleModel
, andColorModel
to match those of another image.
Parameters: layout
An ImageLayout
used to selectively override the image's layout,SampleModel
, andColorModel
. If null, all parameters will be taken from the second argument.
im
A RenderedImage
used as the basis for the layout.
4.4.10 Reading URL Images
TheURL
operation creates an image whose source is specified by a Uniform Resource Locator (URL). TheURL
operation takes one parameter.
Parameter Type Description URL java.net.URL.
classThe path of the file to read from.
Listing 4-12 shows a code sample for a
URL
operation.
Listing 4-12 Example of Reading a URL Image
// Define the URL to the image. url = new URL("http://webstuff/images/duke.gif"); // Read the image from the designated URL. RenderedOp src = JAI.create("url", url);
4.5 Reformatting an Image
TheFormat
operation reformats an image by casting the pixel values of an image to a given data type, replacing theSampleModel
andColorModel
of an image, and restructuring the image's tile grid layout.The pixel values of the destination image are defined by the following pseudocode:
dst[x][y][b] = cast(src[x][y][b], dataType)The output
- where
dataType
is one of the constantsTYPE_BYTE
,TYPE_SHORT
,TYPE_USHORT
,TYPE_INT
,TYPE_FLOAT
, orTYPE_DOUBLE
fromjava.awt.image.DataBuffer
.SampleModel
,ColorModel
and tile grid layout are specified by passing anImageLayout
object as aRenderingHint
namedImageLayout
. The output image will have aSampleModel
compatible with the one specified in the layout hint wherever possible; however, for output data types of float and double aComponentSampleModel
will be used regardless of the value of thehint
parameter.The
ImageLayout
may also specify a tile grid origin and size which will be respected.The typecasting performed by the
Format
operation is defined by the set of expressions listed in Table 4-8, depending on the data types of the source and destination. Casting an image to its current data type is a no-op. See The Java Language Specification for the definition of type conversions between primitive types.In most cases, it is not necessary to explicitly perform widening typecasts since they will be performed automatically by image operators when handed source images having different datatypes.
The
clamp
function may be defined as:
int clamp(int x, int low, int high) { return (x < low) ? low : ((x > high) ? high : x); }
The
Format
operation takes a single parameter:
Parameter Type Description dataType Integer The output data type (from java.awt.image.DataBuffer). One of TYPE_BYTE, TYPE_SHORT, TYPE_USHORT, TYPE_INT, TYPE_FLOAT, or TYPE_DOUBLE.
4.6 Converting a Rendered Image to Renderable
To use a Renderable DAG with a non-renderable image type, the image must first be converted from a Rendered type to a Renderable type. For example, to use an image obtained from a remote server in a Renderable chain, you would want to treat the source image as aRenderedImage
, then convert it to aRenderableImage
for further processing.The
Renderable
operation produces aRenderableImage
from aRenderedImage
source. TheRenderableImage
thus produced consists of a "pyramid" ofRenderedImage
s at progressively lower resolutions. The lower resolution images are produced by invoking the chain of operations specified via thedownSampler
parameter on the image at the next higher resolution level of the pyramid. ThedownSampler
operation chain must adhere to the specifications described for the constructors of theImageMIPMap
class, which accept this type of parameter (see Section 4.2.9.1, "The Down Sampler").The
downSampler
operation chain must reduce the image width and height at each level of the pyramid. The default operation chain fordownSampler
is a low pass filter implemented using a 5 x 5 separable Gaussian kernel derived from the one-dimensional kernel:[0.05 0.25 0.40 0.25 0.05]followed by subsampling by 2. This filter is known as a Laplacian pyramid1 and makes a perfectly gooddownSampler
for most applications. If this downSampler doesn't work for your specific application, you can create your own and call it with thedownSampler
parameter.The number of levels in the pyramid will be such that the larger dimension (width or height) of the lowest-resolution pyramid level is less than or equal to the value of the
maxLowResDim
parameter, which must be positive. The default value for themaxLowResDim
parameter is 64, meaning that the lowest-resolution pyramid level will be an image whose largest dimension is 64 pixels or less.The minimum x and y coordinates and height in rendering-independent coordinates are supplied by the parameters
minX
,minY
, andheight
, respectively. The value of theheight
parameter must be positive. It is not necessary to supply a value for the rendering-independent width as this is derived by multiplying the supplied height by the aspect ratio (width divided by height) of the sourceRenderedImage
.The
Renderable
operation takes five parameters, as follows:
The default values for these parameters are:
downSampler
- a low-pass filter (see Section 4.2.9.1, "The Down Sampler")
maxLowResDim
- 64
minX
- 0.0F
minY
- 0.0FListing 4-13 shows a code sample for a
height
- 1.0FRenderable
operation. The default parameters are used for all five parameters. The output of theRenderable
operation (ren
) can be passed to the next renderable operation in the graph.
Listing 4-13 Example of Converting a Rendered Image to Renderable
// Derive the RenderableImage from the source RenderedImage. ParameterBlock pb = new ParameterBlock(); pb.addSource(src); pb.add(null).add(null).add(null).add(null).add(null); // Create the Renderable operation. RenderableImage ren = JAI.createRenderable("renderable", pb);
4.7 Creating a Constant Image
Theconstant
operation defines a multi-banded, tiled rendered image where all the pixels from the same band have a constant value. The width and height of the destination image must be specified and greater than 0.The
constant
operation takes three parameters, as follows:
Parameter Type Description width Float The width of the image in pixels.
height Float The height of the image in pixels.
bandValues Number The constant pixel band values.
At least one constant must be supplied. The number of bands of the image is determined by the number of constant pixel values supplied in the
bandValues
parameter. The data type is determined by the type of the constant from the first entry.Listing 4-14 shows a code sample for a
Constant
operation.
Listing 4-14 Example Constant Operation
// Create the ParameterBlock. Byte[] bandValues = new Byte[1]; bandValues[0] = alpha1; pb = new ParameterBlock(); pb.add(new Float(src1.getWidth())); // The width pb.add(new Float(src1.getHeight())); // The height pb.add(bandValues); // The band values // Create the constant operation. PlanarImage afa1 = (PlanarImage)JAI.create("constant", pb);
4.8 Image Display
JAI uses the Java 2DBufferedImage
model for displaying images. TheBufferedImage
manages an image in memory and provides ways to store pixel data, interpret pixel data, and to render the pixel data to aGraphics2D
context.The display of images in JAI may be accomplished in several ways. First, the
drawRenderedImage()
call onGraphics2D
may be used to produce an immediate rendering. Another method is to instantiate a display widget that responds to user requests such as scrolling and panning, as well as expose events, and requests image data from aRenderedImage
source. This technique allows image data to be computed on demand.It is for this purpose that JAI provides a widget, available in the
javax.media.jai.widget
package, called aScrollingImagePanel
. TheScrollingImagePanel
takes aRenderedImage
and a specified width and height and creates a panel with scrolling bars on the right and bottom. The image is placed in the center of the panel.The scrolling image panel constructor takes three parameters. The first parameter is the image itself, which is usually the output of some previous operation in the rendering chain. The next two parameters are the image width and height, which can be retrieved with the
getWidth
andgetHeight
methods of the node in which the image was constructed (such asRenderedOp
).The width and height parameters do not have to be the same as the image's width and height. The parameters can be either larger or smaller than the image.
Once the
ScrollingImagePanel
is created, it can be placed anywhere in aFrame
, just like any other AWT panel. Listing 4-15 shows a code sample demonstrating the use of a scrolling image panel.
Listing 4-15 Example Scrolling Image Panel
// Get the image width and height. int width = image.getWidth(); int height = image.getHeight(); // Attach the image to a scrolling panel to be displayed. ScrollingImagePanel panel = new ScrollingImagePanel( image, width, height); // Create a Frame to contain the panel. Frame window = new Frame("Scrolling Image Panel Example"); window.add(panel); window.pack(); window.show();
For a little more interesting example, consider the display of four images in a grid layout. The code sample in Listing 4-16 arranges four images into a 2 x 2 grid. This example uses the
java.awt.Panel
and thejava.awt.GridLayout
objects. These objects are not described in this document. See the Java Platform documentation for more information.
Listing 4-16 Example Grid Layout of Four Images
// Display the four images in row order in a 2 x 2 grid. setLayout(new GridLayout(2, 2)); // Add the components, starting with the first entry in the // first row, the second, etc. add(new ScrollingImagePanel(im1, width, height)); add(new ScrollingImagePanel(im2, width, height)); add(new ScrollingImagePanel(im3, width, height)); add(new ScrollingImagePanel(im4, width, height)); pack(); show();
The constructor for the
GridLayout
object specifies the number of rows and columns in the display (2 x 2 in this example). The four images (im1
,im2
,im3
, andim4
) are then added to the panel in separateScrollingImagePanel
s. The resulting image is arranged as shown in Figure 4-5.
Figure 4-5 Grid Layout of Four Images
API:javax.media.jai.RenderedOp
- int getWidth()
- returns the width of the rendered image.
- int getHeight()
- returns the height of the rendered image.
API:javax.media.jai.widget.ScrollingImagePanel
- ScrollingImagePanel(RenderedImage im, int width, int height)
- constructs a
ScrollingImagePanel
of a given size for a givenRenderedImage
.
Parameters: im
The RenderedImage
displayed by theImageCanvas
.
width
The panel width.
height
The panel height.
4.8.1 Positioning the Image in the Panel
You can define the position of the image within theScrollingImagePanel
by specifying either the position of the image origin or the image center location. ThesetOrigin
method sets the origin of the image to a given (x, y) position within theScrollingImagePanel
. ThesetCenter
method sets the image center to a given (x, y) position within theScrollingImagePanel
.
API:javax.media.jai.widget.ScrollingImagePanel
- void setOrigin(int x, int y)
- sets the image origin to a given (x, y) position. The scrollbars are updated appropriately.
Parameters: x
The image x origin.
y
The image y origin.
- void setCenter(int x, int y)
- sets the image center to a given (x, y) position. The scrollbars are updated appropriately.
Parameters: x
The image x center.
y
The image y center.
4.8.2 The ImageCanvas Class
A canvas in Java is a rectangular area in which you draw. JAI extends thejava.awt.Canvas
class with theImageCanvas
class, which allows you to "draw" an image in the canvas. LikeCanvas
, theImageCanvas
class inherits most of its methods fromjava.awt.Component
, allowing you to use the same event handlers for keyboard and mouse input.The
ImageCanvas
class is a simple output widget for aRenderedImage
and can be used in any context that calls for aCanvas
. TheImageCanvas
class monitors resize and update events and automatically requests tiles from its source on demand. Any displayed area outside the image is displayed in gray.Use the constructor or the
set
method to include aRenderedImage
in the canvas, then use thesetOrigin
method to set the position of the image within the canvas.
API:javax.media.jai.widget.ImageCanvas
- ImageCanvas(RenderedImage im, boolean drawBorder)
- constructs an
ImageCanvas
to display aRenderedImage
.
Parameters: im
A RenderedImage
to be displayed.
drawBorder
True if a raised border is desired.
- ImageCanvas(java.awt.image.RenderedImage im)
- constructs an
ImageCanvas
to display aRenderedImage
.
Parameters: im
A RenderedImage
to be displayed.
- void set(RenderedImage im)
- changes the source image to a new RenderedImage.
Parameters: im
The new RenderedImage
to be displayed.
- void paint(java.awt.Graphics g)
- paint the image onto a
Graphics
object. The painting is performed tile-by-tile, and includes a gray region covering the unused portion of image tiles as well as the general background.4.8.3 Image Origin
The origin of an image is set with theImageCanvas.setOrigin
method. The origin of an image is obtained with thegetXOrigin
andgetYOrigin
methods.Geometric operators are treated differently with respect to image origin control. See Chapter 8, "Geometric Image Manipulation."
API:javax.media.jai.widget.ImageCanvas
- void setOrigin(int x, int y)
- sets the origin of the image at
x,y
.
- int getXOrigin()
- returns the x coordinate of the image origin.
- int getYOrigin()
- returns the y coordinate of the image origin.
Programming in Java Advanced Imaging
1 Burt, P.J. and Adelson, E.H., "The Laplacian pyramid as a compact image code," IEEE Transactions on Communications, pp. 532-540, 1983.Copyright © 1999, Sun Microsystems, Inc. All rights reserved.
Casa de Bender
